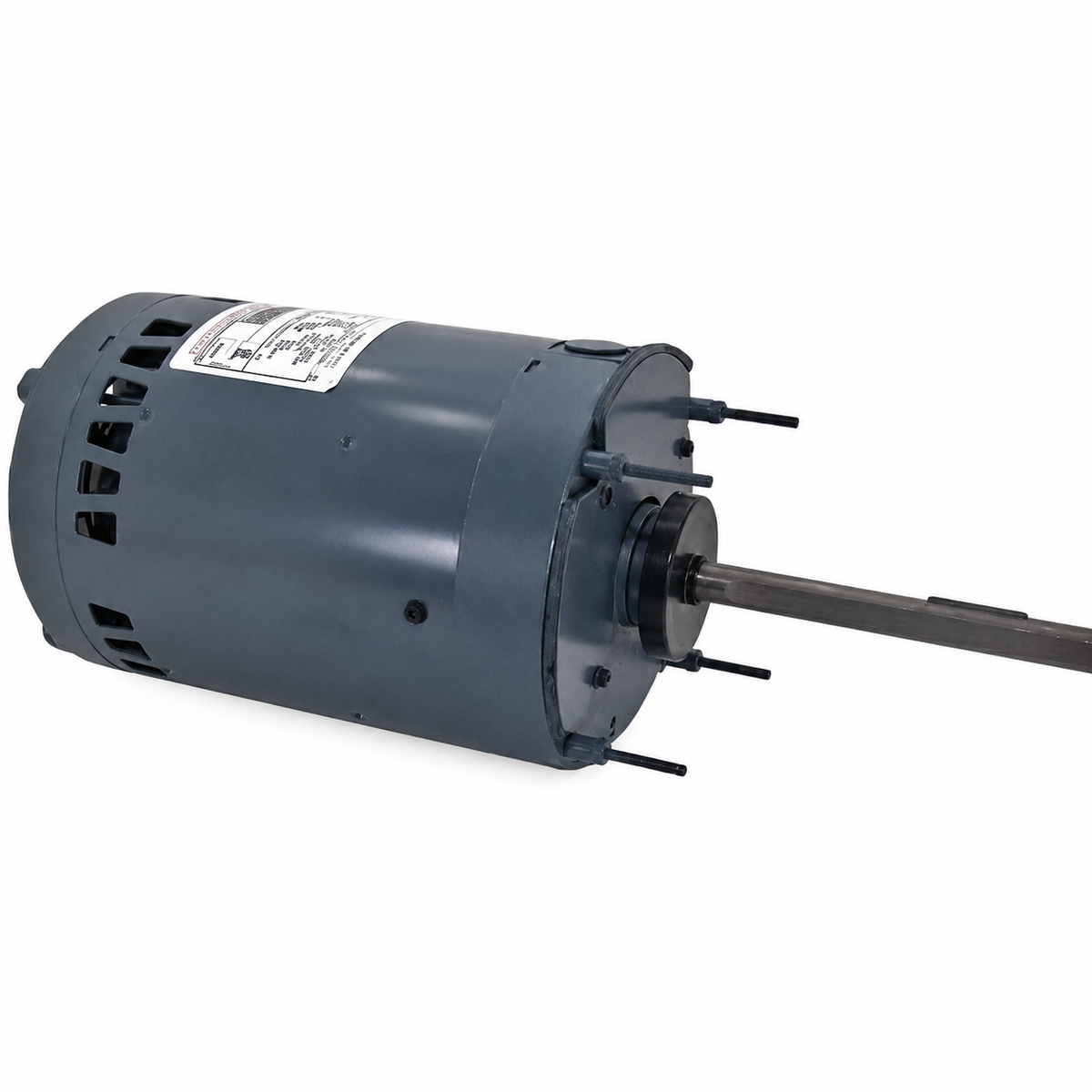

Century Condenser Fan Motors (HVAC/R) C771 - 1.5 HP - 230/460 V - 1075 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) C771 - 1.5 HP - 230/460 V - 1075 RPM - Single phase

$735.00 CAD
$735.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : C771

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1.5 HP

RPM : 1075

Voltage : 230/460 V

Phase : Single

Frame : 56Y

Mounting : Stud Mount

  • Horsepower :1-1/2
  • Voltage : 230/460
  • Amps :3.30 / 6.60
  • RPM :1075
  • Frequency :60 Hz
  • Length :12-1/16"
  • "C" Dim. :18-1/16"
  • Enclosure :Open Opposite Shaft-End
  • Shaft Dim. :5/8” x 6.00”
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :60°C
  • Capacitor Rating :25MFD-370V
  • Feature(s) :Class 'B' Insulation, Round Body
  • Weight (lbs.) :46

  • References : A.O. Smith F48SZ6V1, A.O. Smith 159032, A.O. Smith 327P925, A.O. Smith FY1156, Century 159032, Century 165836, Century C771, Emerson 2204, Emerson K2896, Franklin 12716, Marathon X271, Marathon X410, Mcquay/Snyder Gen 879-349145-00, Mcquay/Snyder Gen 978-250705-00, Packard 70507, Packard 91116, Trane MOT 1191, Trane MOT 1192, Trane MOT 1193, Trane MOT 2462, Trane MOT 6066, Universal Electric 716
