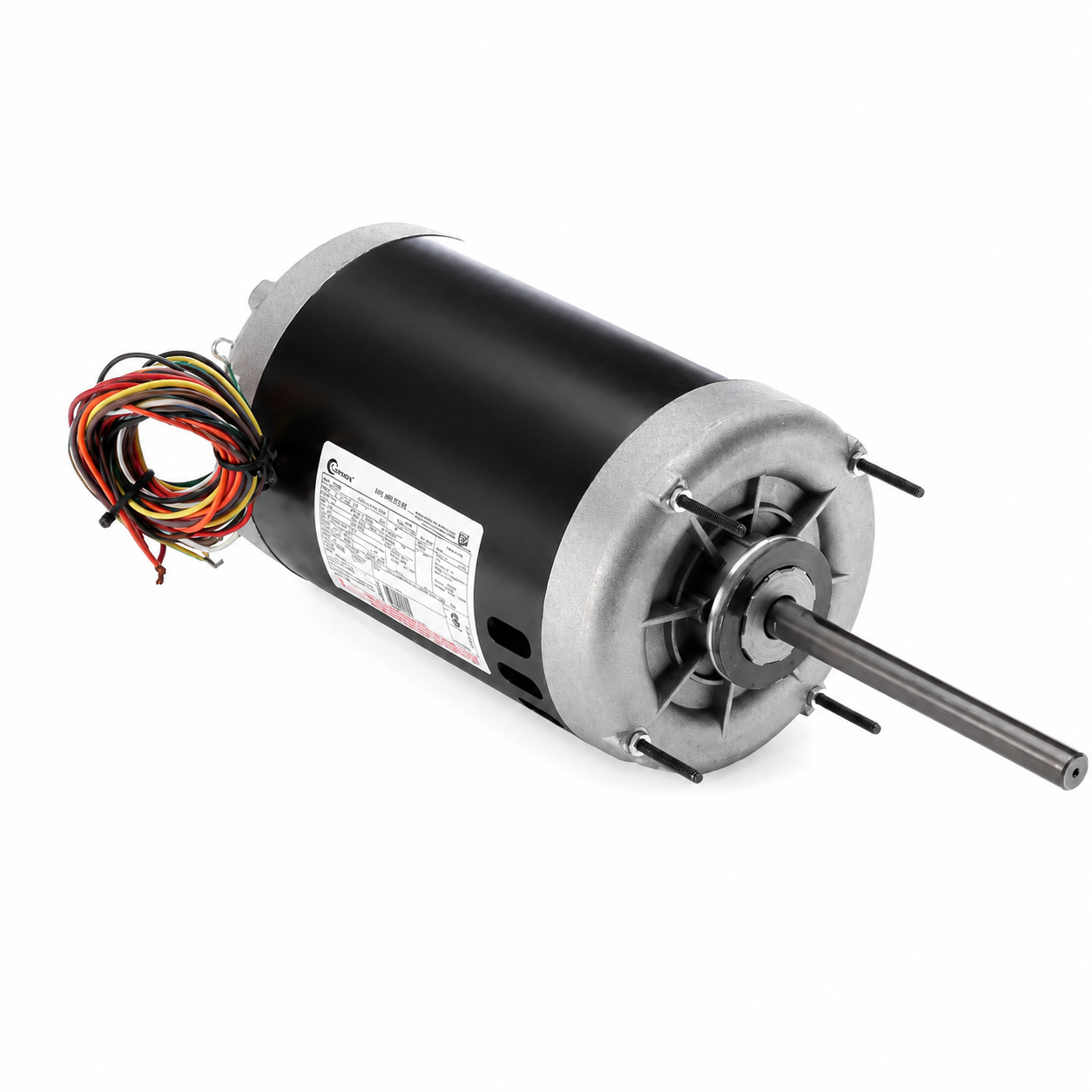

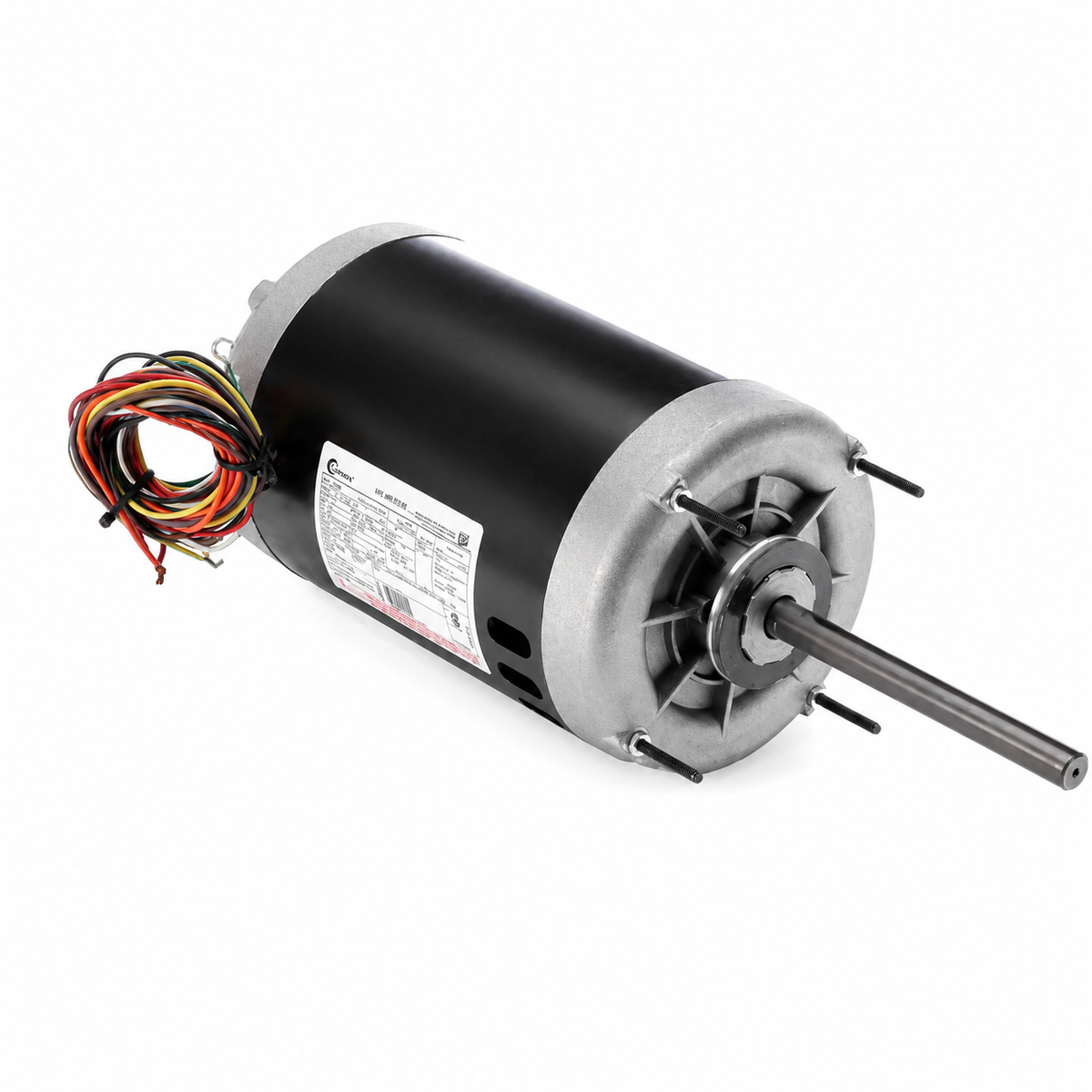

Century Condenser Fan Motors (HVAC/R) C490 - 1 HP - 230/460 V - 825 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) C490 - 1 HP - 230/460 V - 825 RPM - Single phase

$968.00 CAD
$968.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : C490

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1 HP

RPM : 825

Voltage : 230/460 V

Phase : Single

Frame : 56Z

Mounting : Belly Band / Stud

  • Horsepower :1
  • Voltage : 230/460
  • Amps :3.40/7.20-6.80
  • RPM :825
  • Frequency :60 Hz
  • Length :11-1/2"
  • "C" Dim. :17-1/2"
  • Enclosure :Open Air Over
  • Shaft Dim. :5/8” x 6.00”
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56Z
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :12.5MFD-370V
  • Feature(s) :Class 'B' Insulation, Resilient mounting rings included, Thru-Bolts
  • Weight (lbs.) :41

  • Reference : A.O. Smith 177691, Century 177691, General Electric P185 5KCP49WG40 5KCP49WN9713, M0037,
