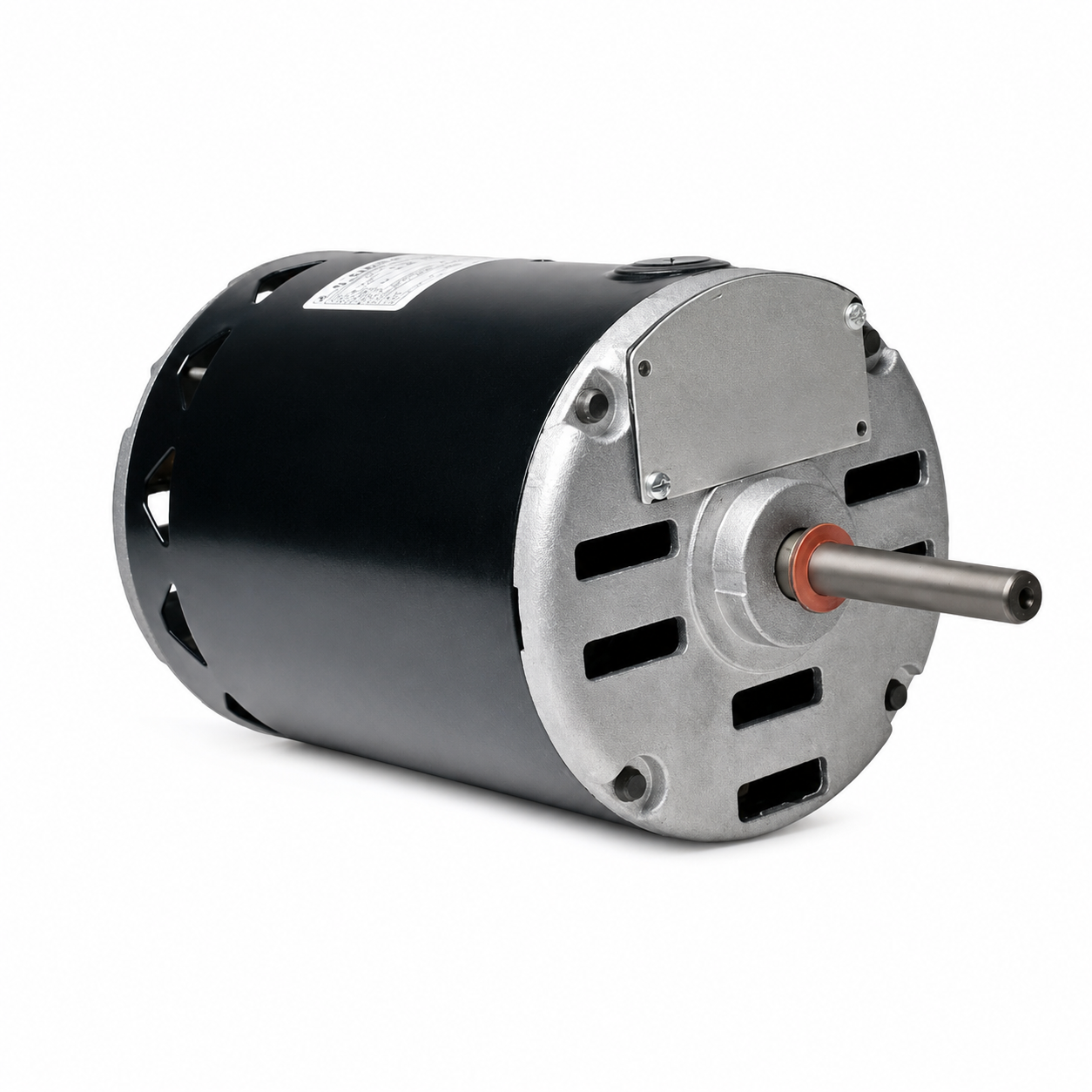

Century Condenser Fan Motors (HVAC/R) 9428A - 1 HP - 575 V - 1100 RPM - 575 V - Three phase

Century Condenser Fan Motors (HVAC/R) 9428A - 1 HP - 575 V - 1100 RPM - 575 V - Three phase

$560.00 CAD
$560.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 9428A

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1 HP

RPM : 1100

Voltage : 575 V

Phase : Three

Frame : 48Y

Mounting : Belly Band Mount

  • Horsepower :1
  • Voltage :575
  • Amps :1.30
  • RPM :1100
  • Frequency :60 Hz
  • Length :7-1/2"
  • "C" Dim. :10-11/16"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :1/2" x 2-23/32"
  • Type :Three Phase
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :3
  • Ambient Temp. :40°C
  • Feature(s) :Class 'B' Insulation, Fan Canopy Belly
  • Weight (lbs.) :20
