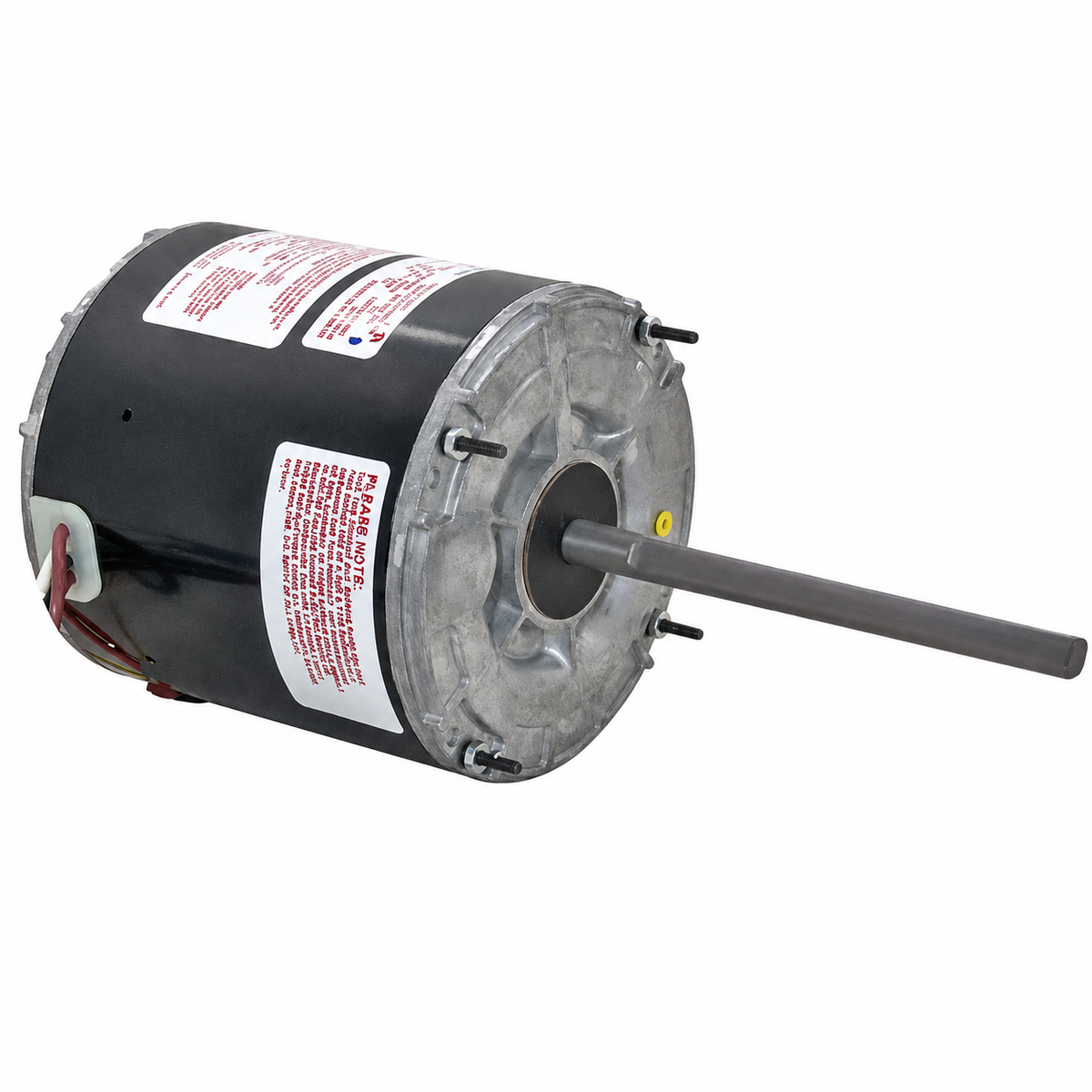

Century Condenser Fan Motors (HVAC/R) 791A - 3/4 HP - 460 V - 1075 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) 791A - 3/4 HP - 460 V - 1075 RPM - Single phase

$551.00 CAD
$551.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 791A

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1075

Voltage : 460 V

Phase : Single

Frame : 48Y

Mounting : Stud Mount

  • Horsepower :3/4
  • Voltage :460
  • Amps :2.50
  • RPM :1075
  • Frequency :60 Hz
  • Length :6-1/8"
  • "C" Dim. :12-3/16"
  • Enclosure :Totally Enclosed Air Over
  • Shaft Dim. :1/2" x 6-1/16"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :60°C
  • Capacitor Rating :10MFD-370V
  • Feature(s) :Class 'B' Insulation, Thru-Bolts, 26" Leads
  • Weight (lbs.) :22

  • Reference : Emerson 3742, Fasco D1914, GE 3739, Marathon X459, A.O. Smith 791, A.O. Smith F48Z18A01, A.O. Smith OAN1076, Universal Electric HF3U7056, Fasco D910
