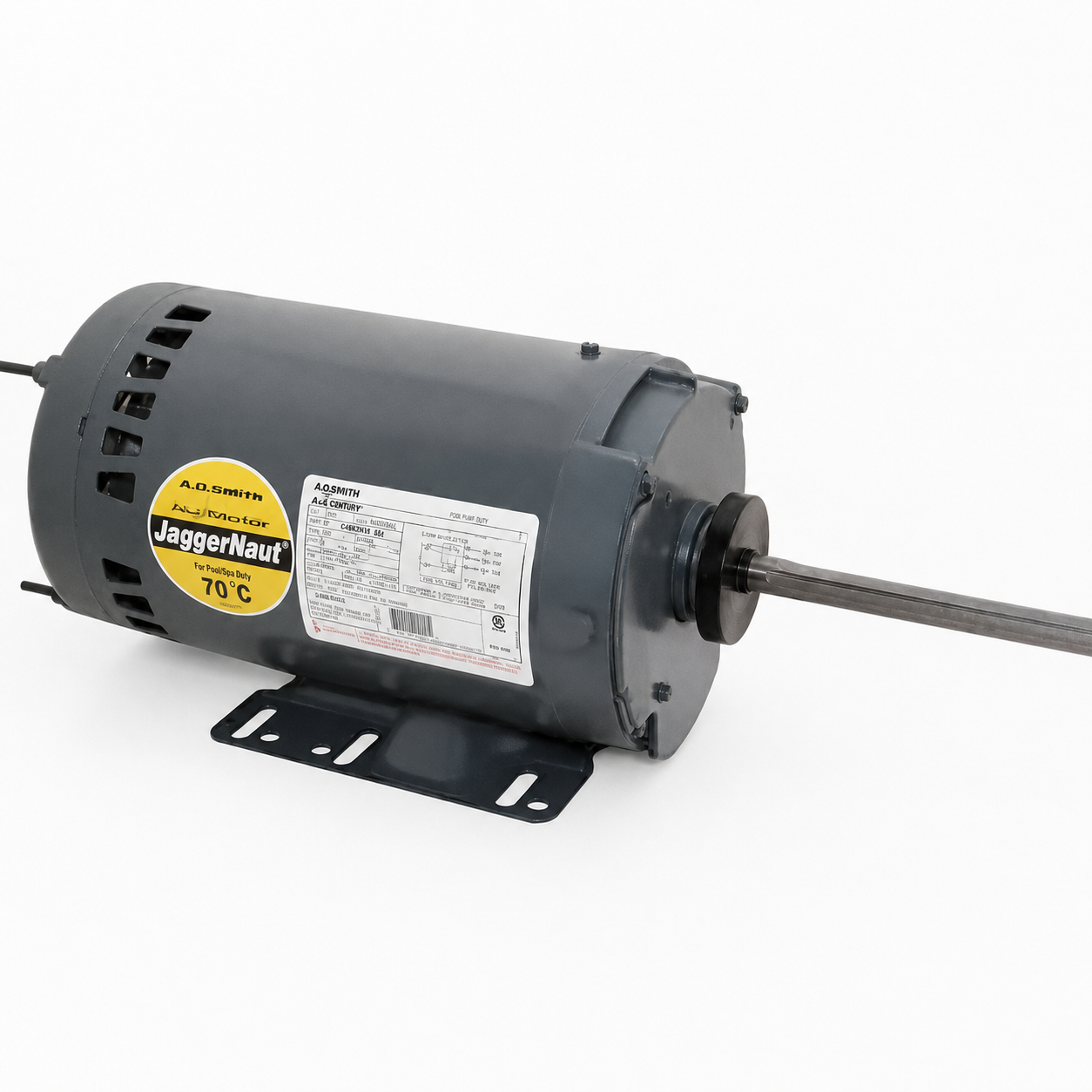

Century Condenser Fan Motors (HVAC/R) 5H1054AV1 - 1.5 HP - 575 V - 850 RPM - Three phase

Century Condenser Fan Motors (HVAC/R) 5H1054AV1 - 1.5 HP - 575 V - 850 RPM - Three phase

$998.00 CAD
$998.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 5H1054AV1

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1.5 HP

RPM : 850

Voltage : 575 V

Phase : Three

Frame : 56Y

Mounting : Rigid Base

  • Horsepower :1.5
  • Voltage :575
  • Amps :3.00
  • RPM :850
  • Frequency :60 Hz
  • "C" Dim. :18-25/32”
  • Enclosure :Open Opposite Shaft-End
  • Shaft Dim. :5/8” x 6.00”
  • Type :Three Phase
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Thermally Protected
  • Service Factor :1.00
  • Phase :3
  • Ambient Temp. :70°C
  • Feature(s) :Rigid Removable Base, Class ‘F’ Insulation, Inverter Duty
  • Weight (lbs.) :47
  • Reference : A.O.Smith P56AF42A01, Franklin Bluffton 1301007497, Marathon 56T850RR40004A2, RefPlus RMT0062, YSDK1100-8D
