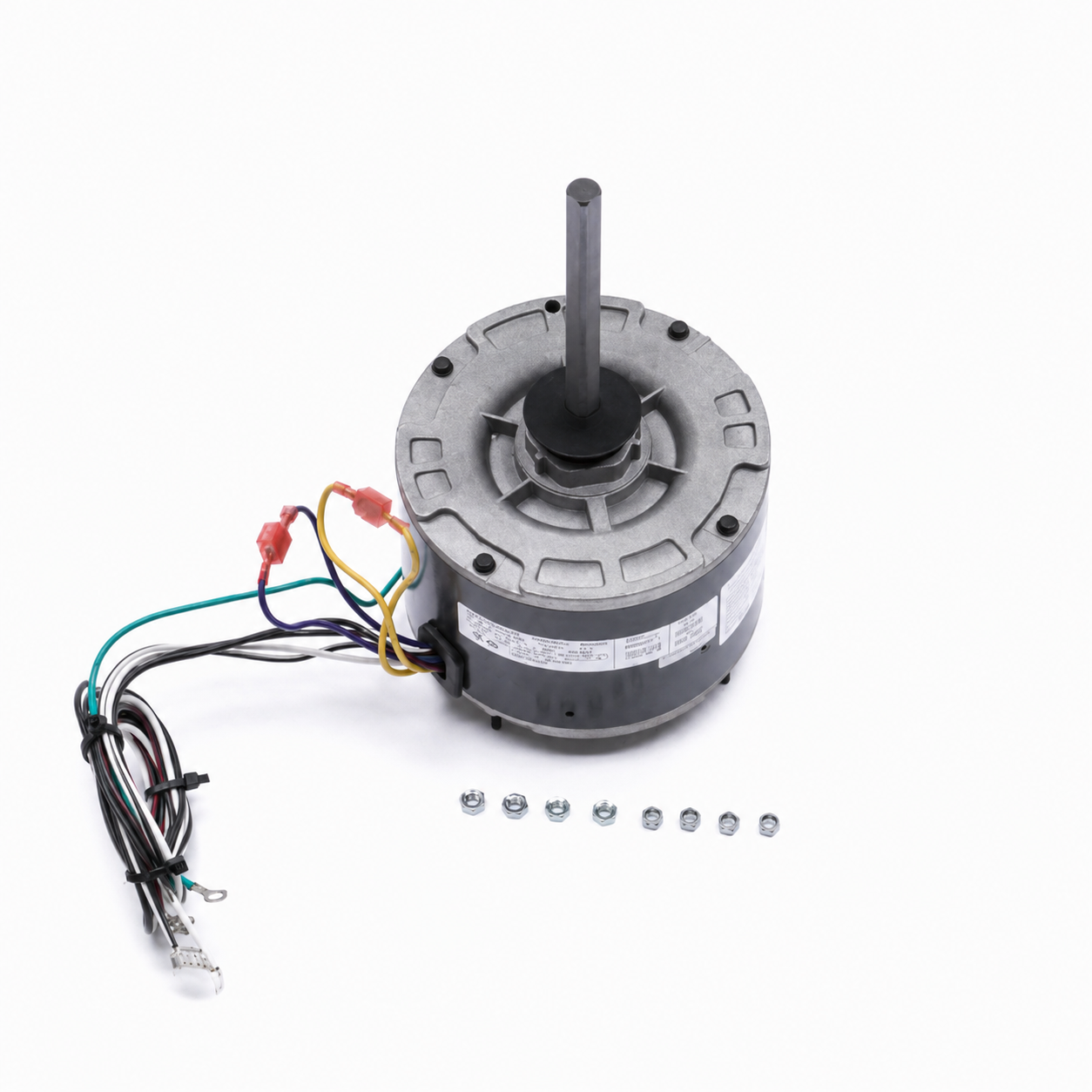

Century EM3727F - Condenser Fan Motors (HVAC/R) 1/6 HP - 208/230 V - 1075 RPM - Single phase

Century EM3727F - Condenser Fan Motors (HVAC/R) 1/6 HP - 208/230 V - 1075 RPM - Single phase

$149.00 CAD
$149.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : EM3727F

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/6 HP

RPM : 1075

Voltage : 208/230 V

Phase : Single

Frame : 48

Mounting : Thru-Bolt Mount

  • Horsepower :1/6
  • Voltage :208-230
  • Amps :1.10
  • RPM :1075
  • Frequency :60 Hz
  • Length :3-7/8”
  • Enclosure :Totally Enclosed
  • Shaft Dim. :1/2" x 6"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :70°C
  • Capacitor Rating :5MFD-370V
  • Feature(s) :No Base, Class 'F' Insulation, Thru Bolts Included
  • Weight (lbs.) :9
  • References: A.O.Smith F48AD22A01, Century FE1016S FSE1016SV1, Fasco D917, General Electric 5KCP39DGY543 3727, Marathon X411, SS3727, Rotom R22184
