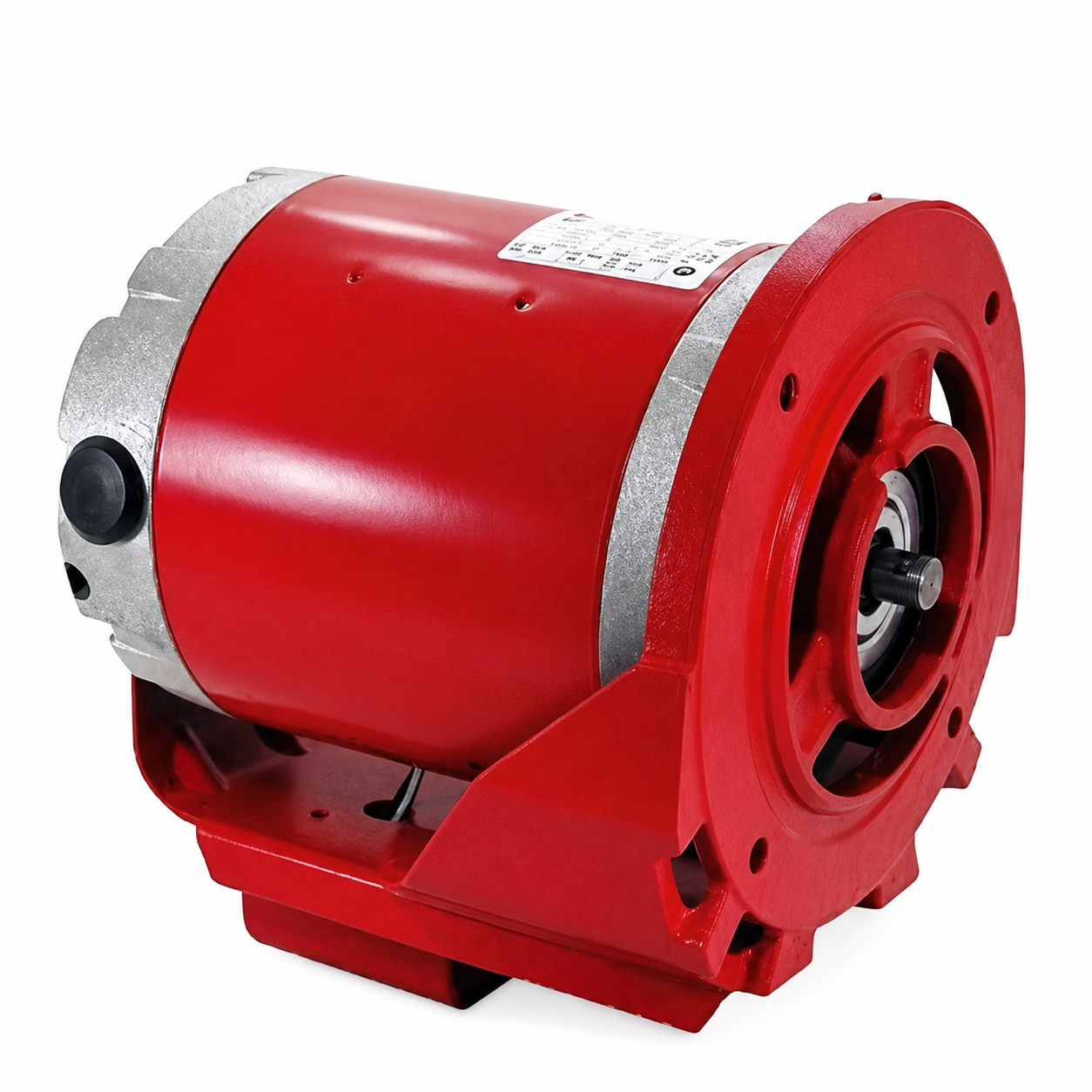

Century Motors Circulator Pump (HVAC/R) HW2024B1L - 1/4 HP - 115 V - 1725 RPM - Single phase

Century Motors Circulator Pump (HVAC/R) HW2024B1L - 1/4 HP - 115 V - 1725 RPM - Single phase

$328.00 CAD
$328.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : HW2024B1L

Brand : Century

HVAC : Motors Circulator Pump (HVAC/R)

Horsepower : 1/4 HP

RPM : 1725

Voltage : 115 V

Phase : Single

Frame : 48Z

Mounting : Bracket Mount

  • Horsepower :1/4
  • Voltage :115
  • Amps :3.60
  • RPM :1725
  • Frequency :60 Hz
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :1/2" x 3/4"
  • Type :Single Phase
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48Z
  • Bearings :Sleeve
  • Rotation :CCWLE
  • Protector :Automatic
  • Service Factor :1.75
  • Phase :1
  • Ambient Temp. :50°C
  • Feature(s) :Class 'B' Insulation, Type 2B, Brackets included, Set screw shaft
  • Weight (lbs.) :16
  • Reference : Armstrong 106045-063 817025-007 S-45, A.O. Smith S48AA32A01, Bell & Gossett 111040, Century 193963, Dayton 4UE14, Emerson Catalogue No. 3259, U.S. Motors 3259, Rotom CP-R1354
