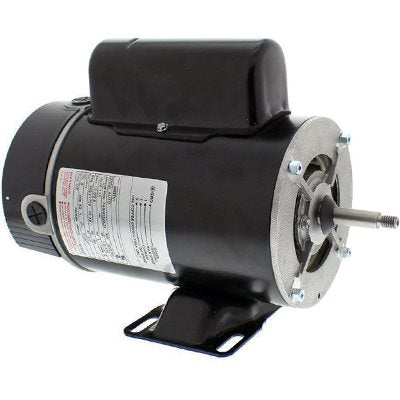

Century Pool & Spa Motors BN34V1 - 1.5 HP - 230 V - 3450 RPM - Single phase

Century Pool & Spa Motors BN34V1 - 1.5 HP - 230 V - 3450 RPM - Single phase

$530.00 CAD
$530.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : BN34V1

Brand : Century

HVAC : Pool & Spa Motors

Horsepower : 1.5 HP

RPM : 3450

Voltage : 230 V

Phase : Single

Frame : 48Y

Mounting : Rigid Base

  • 1.5 HP
  • Amps : 8.0/2.6
  • RPM : 3450/1725
  • Frequency : 60 Hz
  • "C" Dim. : 12.83"
  • Enclosure : Open Drip-Proof
  • Type : Capacitor Start
  • Speeds : 2
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : CCWPE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 25MFD-370V
  • Feature(s) : Class 'B' Insulation, Rigid Base, 12 & 3 O'Clock Entries, Through Bolt Mount, 4 Thru-Bolts on a 5.146 Bolt Circle, 48/56 Base Mounting
  • Weight (lbs.) : 27
