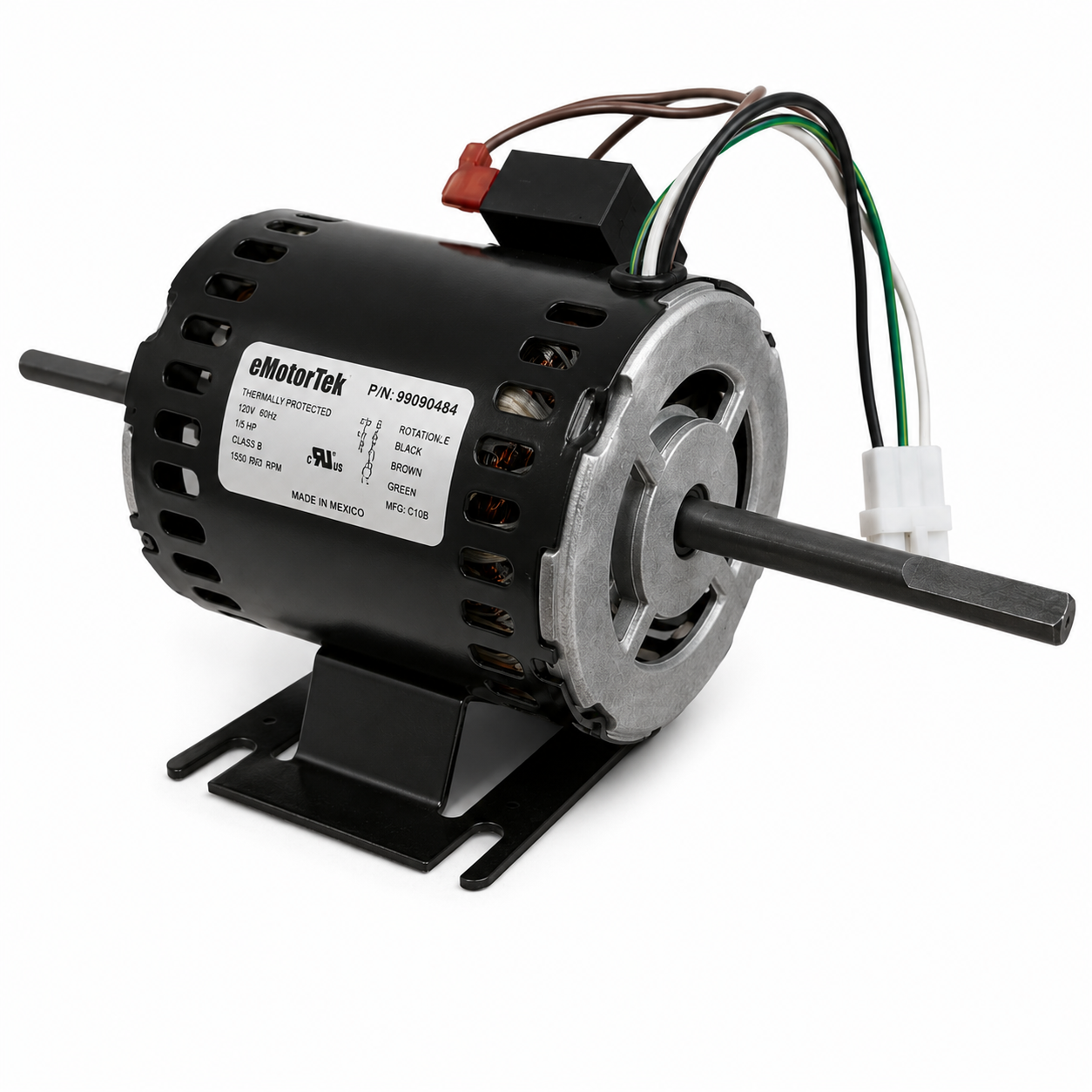

Emotortek OEM Replacement Motors (HVAC/R) 99080486 - 1/20 HP - 120 V - 1625 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) 99080486 - 1/20 HP - 120 V - 1625 RPM - Single phase

$331.00 CAD
$331.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 99080486

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/20 HP

RPM : 1625

Voltage : 120 V

Phase : Single

Frame : 48

Mounting : Rigid Base

  • Horsepower : 1/20
  • Amps : 0.90
  • Frequency : 60 Hz
  • Length : 4-7/16”
  • Enclosure : Open
  • Shaft Dim. : 3-31/32” x 3/8” x 3-31/32”
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 3.3”
  • Bearings : Sleeve
  • Rotation : CWLE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Feature(s) : Double Shaft
  • Weight (lbs.) : 6

  • Reference : Broan L400-A L400K-A L400KL-A, JE2G095 JE2G095N, 1486560, AP5616612, S99080486, L400-A L400K-A L400KL-A, L400L-A, 26715133598, B002NC77UO, B018HBT0NQ, B01IU81RUU
