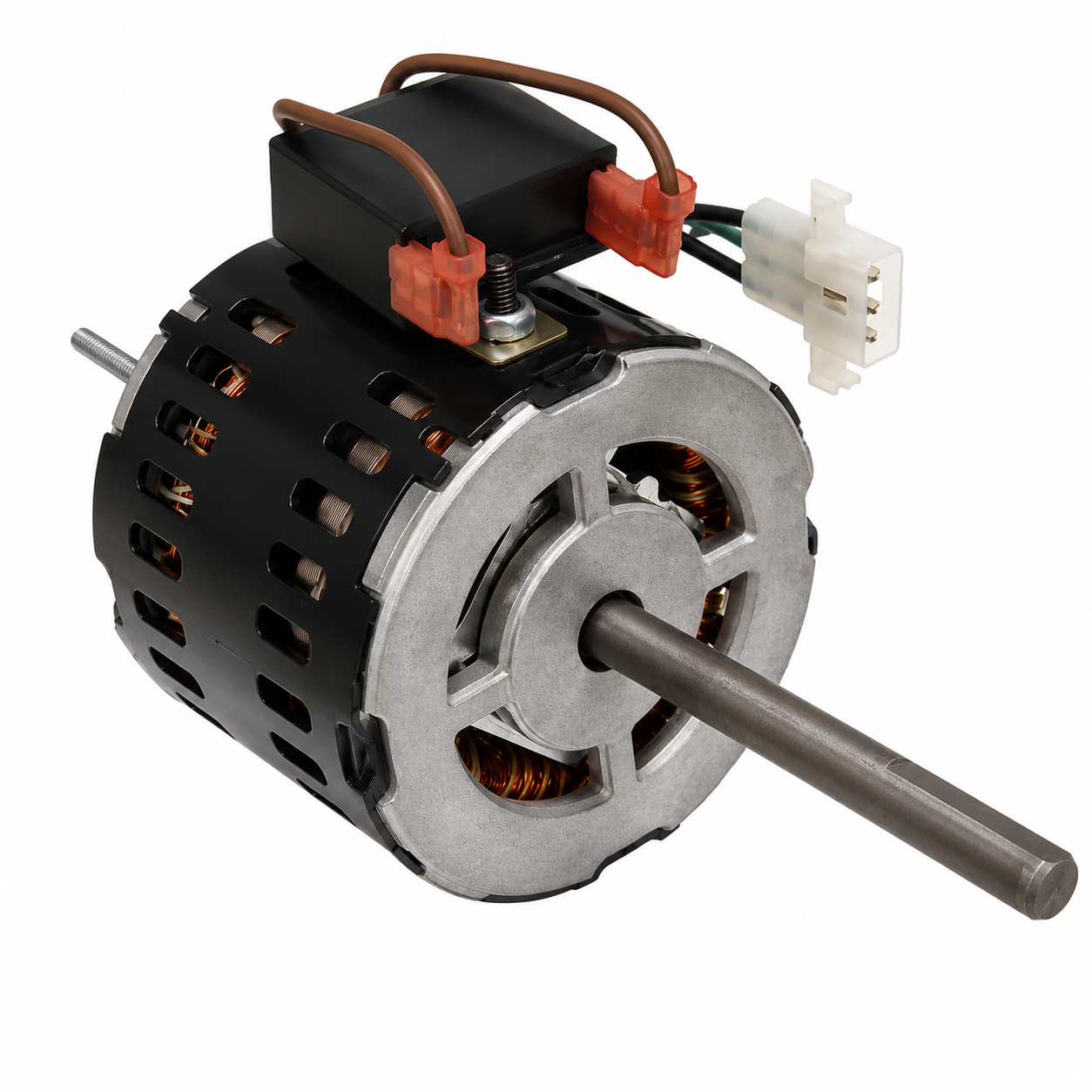

Emotortek OEM Replacement Motors (HVAC/R) 99080485 - 1/20 HP - 120 V - 945 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) 99080485 - 1/20 HP - 120 V - 945 RPM - Single phase

$179.00 CAD
$179.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 99080485

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/20 HP

RPM : 945

Voltage : 120 V

Phase : Single

Frame : 48

Mounting : Thru-Bolt Mount

  • Horsepower : 1/20
  • Amps : 1.20
  • Frequency : 60 Hz
  • Length : 3.00"
  • Enclosure : Open
  • Shaft Dim. : 3/8” x 2-7/8"”
  • Type : Permanent Split Capacitor
  • Diameter : 3.3”
  • Bearings : Ball
  • Rotation : CCWSE
  • Protector : Thermally Protected
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 5.0MFD-370V
  • Feature(s) : Class 'B' Insulation, 4 Mtg. Studs O.S.E, Capacitor Included
  • Weight (lbs.) : 3.6

  • Reference : Broan Nutone L300 HLB3 L300EX S1108442 97014804, Universal Electric JA2Y044 JA2Y044N, 8214315156, 429-482/134, Y4L403B57G Y5L413B862F, Xactone X99080485
