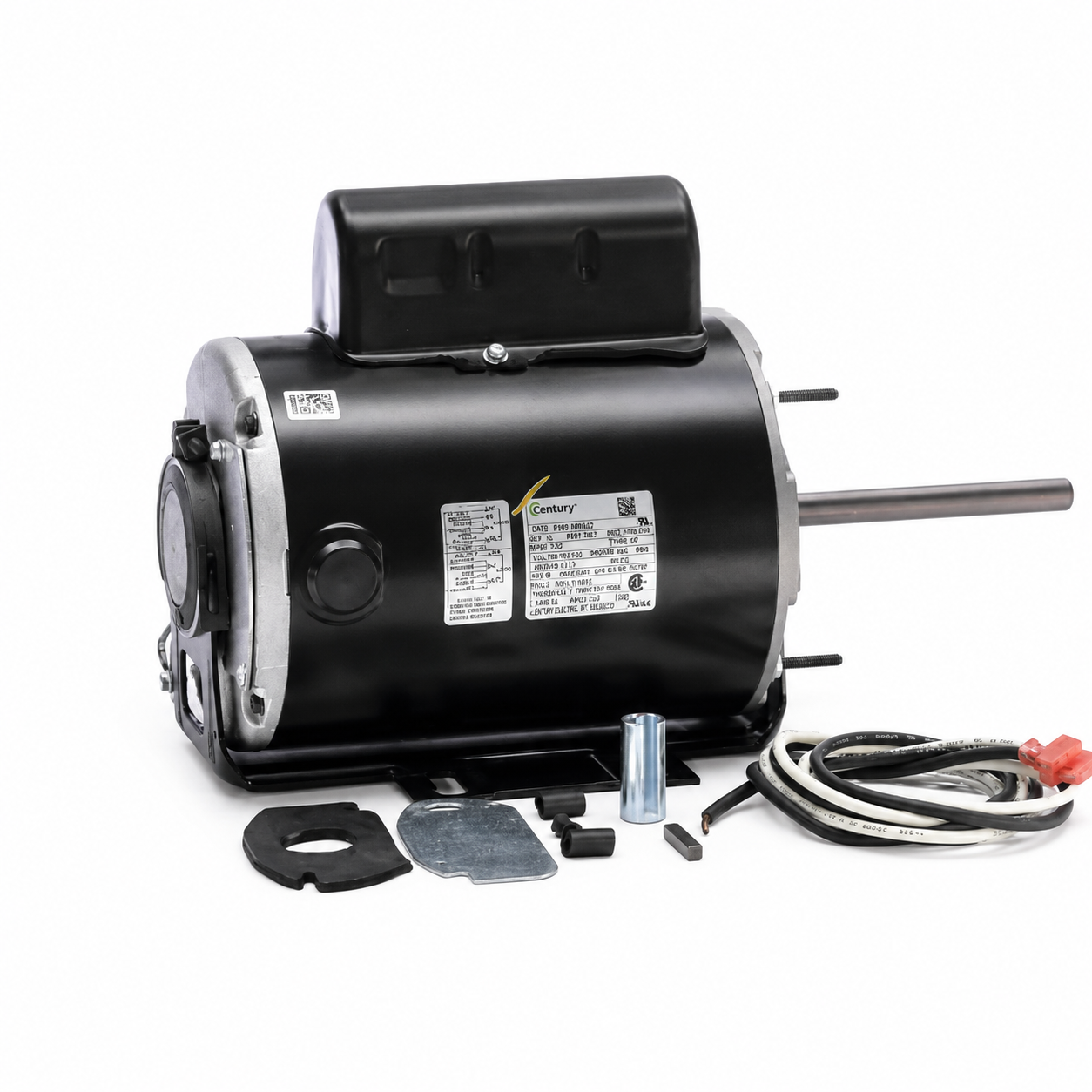

Century Unit Heater Motors (HVAC/R) 769A - 1/2 HP - 115/230 V - 1725 RPM - Single phase

Century Unit Heater Motors (HVAC/R) 769A - 1/2 HP - 115/230 V - 1725 RPM - Single phase

$542.00 CAD
$542.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 769A

Brand : Century

HVAC : Unit Heater Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1725

Voltage : 115/230 V

Phase : Single

Frame : 48Y

Mounting : Resilient Base

  • Horsepower : 1/2
  • Amps : 5.00 / 2.50
  • Frequency : 60 Hz
  • Length : 7-1/2"
  • "C" Dim. : 12-9/16"
  • Enclosure : Totally Enclosed
  • Shaft Dim. : 1/2” x 4-1/2”
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 60°C
  • Capacitor Rating : 25MFD-370VAC
  • Feature(s) : Class 'B' Insulation, Resilient Base, Capacitor Included
  • Weight (lbs.) : 24
  • Référence : A.O. Smith 769, A.O. Smith F48Y96A01, Trane 6153, Trane MOT 6024, Universal Electric HF2T013, Universal Electric HF2J7053
