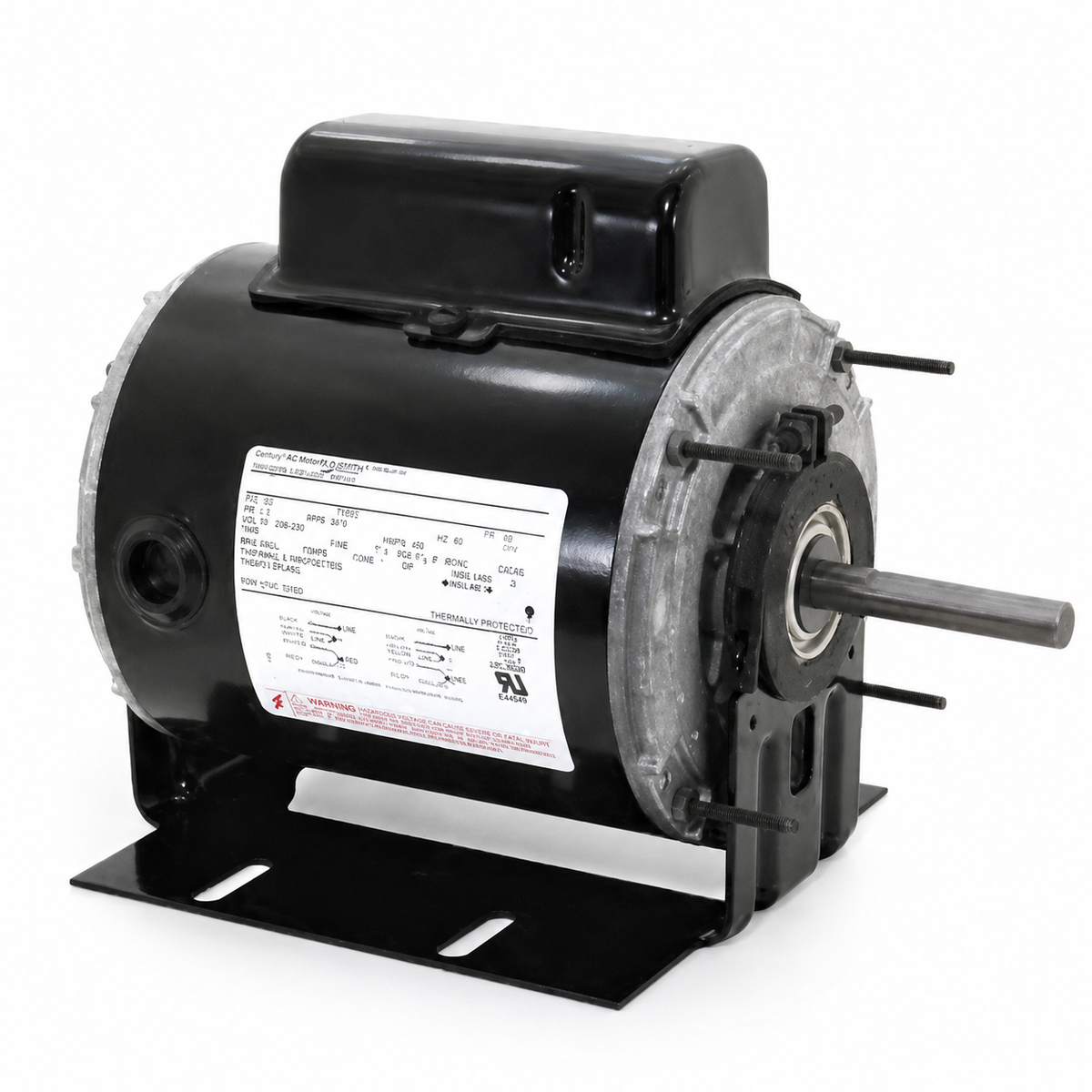

Century Unit Heater Motors (HVAC/R) 731A - 1/4 HP - 115/208-230 V - 1140 RPM - Single phase

Century Unit Heater Motors (HVAC/R) 731A - 1/4 HP - 115/208-230 V - 1140 RPM - Single phase

$440.00 CAD
$440.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 731A

Brand : Century

HVAC : Unit Heater Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1140

Voltage : 115/208-230 V

Phase : Single

Frame : 48Y

Mounting : Resilient Base

  • Horsepower : 1/4
  • Amps : 3.8/1.9
  • Frequency : 60 Hz
  • Length : 6-1/4"
  • "C" Dim. : 11-11/32"
  • Enclosure : Totally Enclosed
  • Shaft Dim. : 1/2” x 4-1/2”
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 60°C
  • Capacitor Rating : 4MFD-370VAC
  • Feature(s) : Class 'B' Insulation, Resilient Base, Capacitor Mounted, Includes split bushing and key 5/8" shafts
  • Weight (lbs.) : 17
  • Reference : Fasco D734, GE 3208, Leland Faraday EM3-208, A.O. Smith 731, A.O. Smith F48Y60A01, A.O. Smith UH1026, A.O. Smith US1026, A.O. Smith US1026NB, Century 152663, Century C747 C045A, Leeson X303, Trane MOT 6196, Universal Electric HF3H048, Universal Electric HF3H088, Universal Electric HF3H7048
