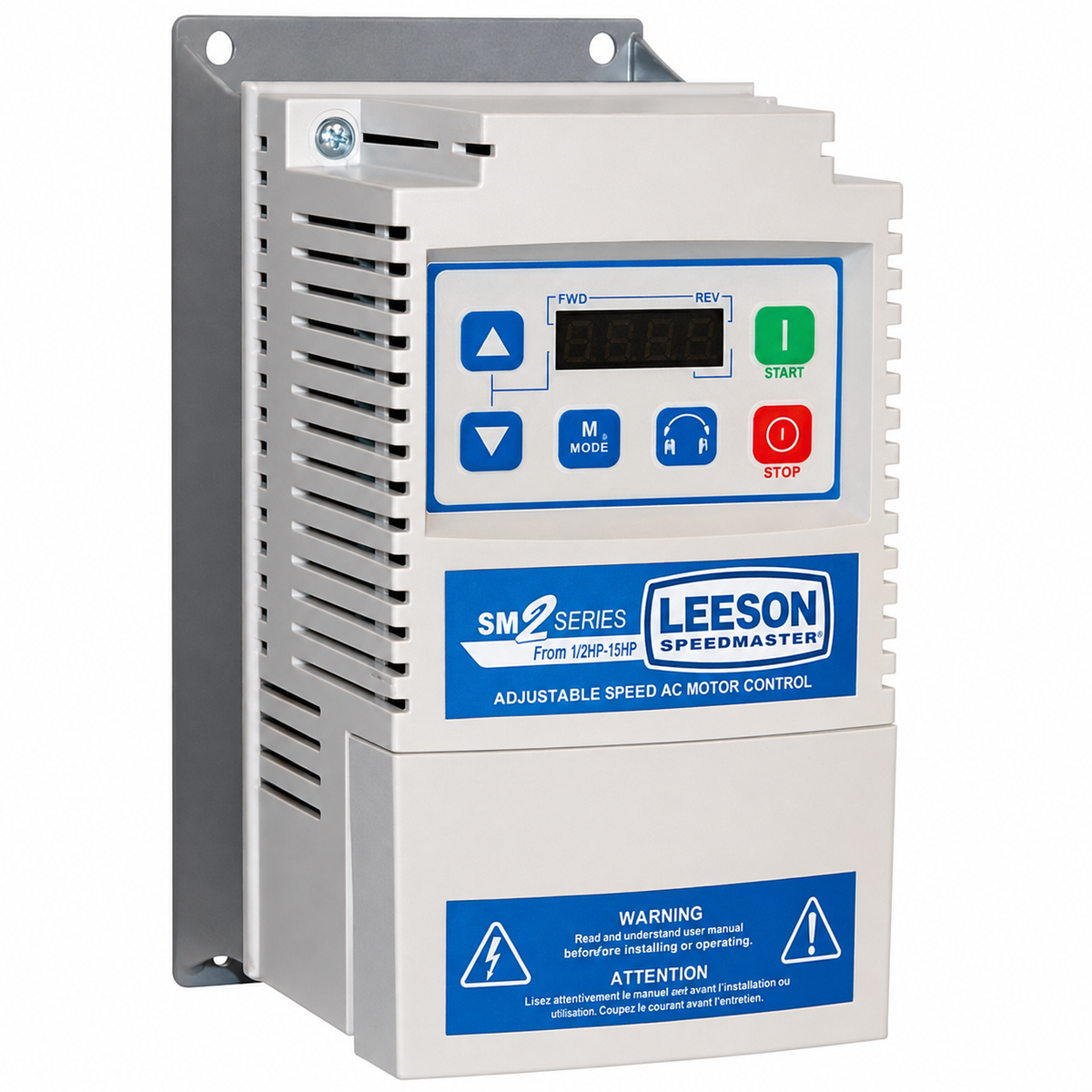

7.5 HP LEESON SM2 VECTOR NEMA1 VFD 208-240V 3PH INPUT 174616.00

7.5 HP LEESON SM2 VECTOR NEMA1 VFD 208-240V 3PH INPUT 174616.00

$1,400.00 CAD
$1,400.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 174616.00

Brand : Leeson

Horsepower : 7.5 HP

  • Product: Variable Frequency Drive (VFD)
  • Brand: Leeson
  • Model: 174616.00
  • Series: SM2 Flux Vector
  • Output Rating: 7.5 HP
  • Input Voltage: 208-240 V
  • Input Phase: Three phase
  • Output: Three phase
  • Output Current: 23 A
  • Enclosure: NEMA 1 / IP31
  • Approx. Product Weight: 7.3 lb
  • Drive Dimensions (H x W x D): 9.83 x 5.12 x 6.3 in
  • Flux vector control with Enhanced V/Hz and auto-tuning
  • 4-digit LED display and optional remote keypad support
