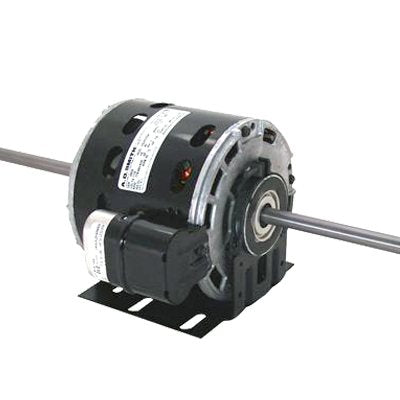

Century Fan Coil Motors (HVAC/R) 680A - 1/8 HP - 115 V - 1725 RPM - Single phase

Century Fan Coil Motors (HVAC/R) 680A - 1/8 HP - 115 V - 1725 RPM - Single phase

$630.00 CAD
$630.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 680A

Brand : Century

HVAC : Fan Coil Motors (HVAC/R)

Horsepower : 1/8 HP

RPM : 1725

Voltage : 115 V

Phase : Single

Frame : 48Y

Mounting : Resilient Base

  • Horsepower : 1/8
  • Amps : 1.50
  • RPM : 775 / 650 / 525
  • Frequency : 60 Hz
  • Enclosure : Open
  • Shaft Dim. : 11-1/2” x 1/2" x 11-1/2"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Sleeve
  • Rotation : CCWLE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 6MFD/370VAC
  • Feature(s) : Resilient Base, Class 'B' insulation
  • Weight (lbs.) : 15
