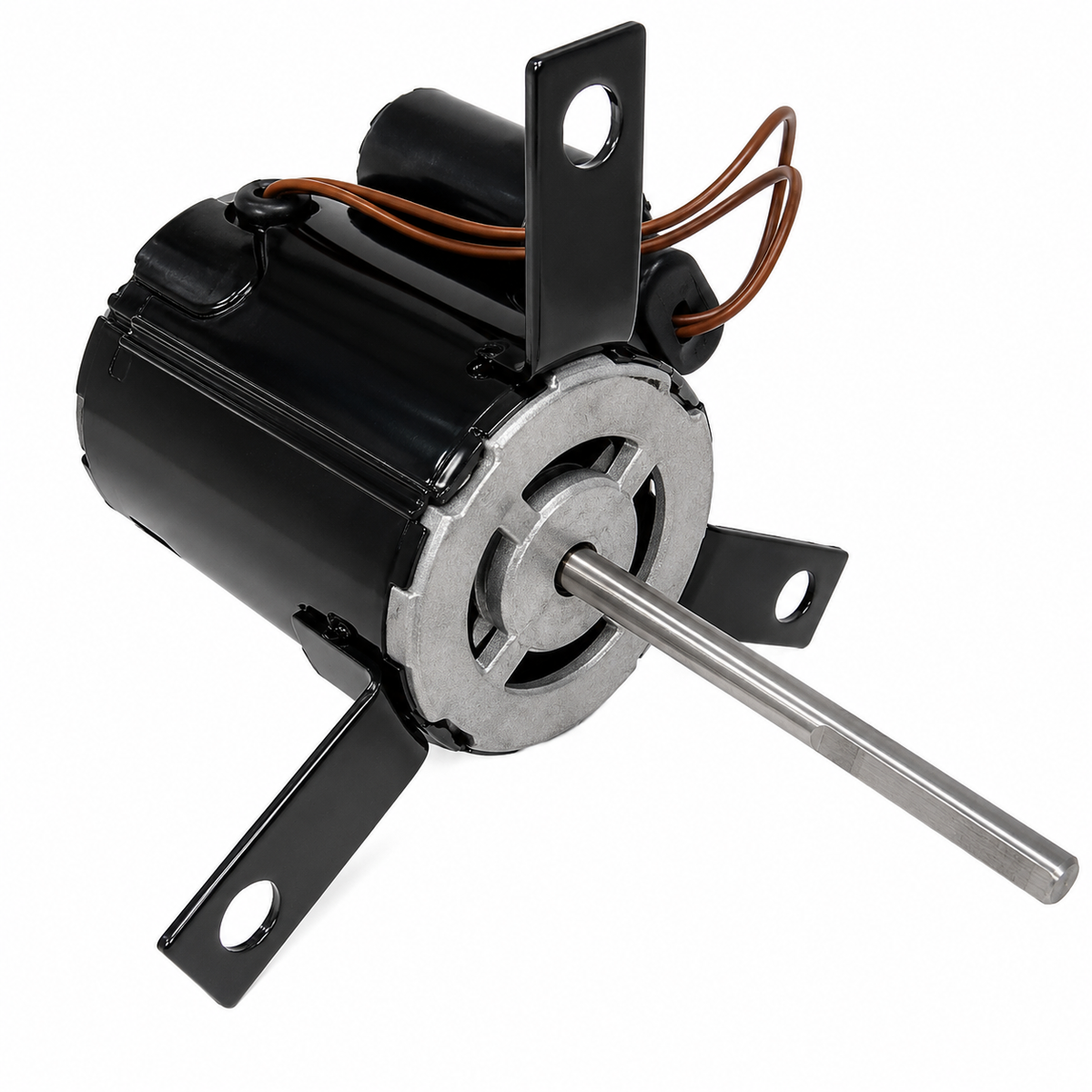

Emotortek OEM Replacement Motors (HVAC/R) 63746 - 1/12 HP - 115 V - 1550 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) 63746 - 1/12 HP - 115 V - 1550 RPM - Single phase

$266.00 CAD
$266.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 63746

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/12 HP

RPM : 1550

Voltage : 115 V

Phase : Single

Frame : 3.3

Mounting : Lug Mount

  • Horsepower : 1/30
  • Amps : 0.50 / 0.40
  • Frequency : 60 Hz
  • Length : 3-17/32”
  • Enclosure : Open
  • Shaft Dim. : 3/8” x 3-11/16”
  • Type : Permanent Split Capacitor
  • Speeds : 2
  • Diameter : 3.3”
  • Bearings : Sleeve
  • Rotation : CWSE
  • Protector : Thermally Protected
  • Ambient Temp. : 40°C
  • Feature(s) : 3 Lug Mounting
  • Weight (lbs.) : 5
  • Reference : Penn Ventilation 63746-0 Model DX10SR FX10SR, JE2H057, Century OPV746, Fasco 7190-2900 7190-3057 7190-3481 D0746, OmniDrive 429-482/23, Universal Electric JE2H057 JE2H057N JE2H076 JE2H076N
