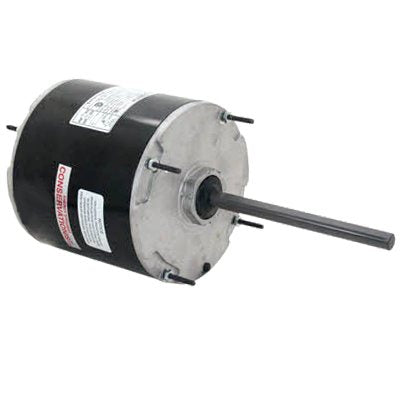

Century Condenser Fan Motors (HVAC/R) 5FE1076SV1 - 3/4 HP - 575 V - 1075 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) 5FE1076SV1 - 3/4 HP - 575 V - 1075 RPM - Single phase

$374.00 CAD
$374.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 5FE1076SV1

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 3/4 HP

RPM : 1075

Voltage : 575 V

Phase : Single

Frame : 48

Mounting : Stud Mount

  • Horsepower : 3/4
  • Amps : 1.90
  • Frequency : 60 Hz
  • Length : 6-1/8”
  • "C" Dim. : 12-5/8"
  • Enclosure : Totally Enclosed, Air Over
  • Shaft Dim. : 1/2” x 6-1/2”
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5.5"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 60°C
  • Capacitor Rating : 15MFD-370V
  • Feature(s) : Class 'B' Insulation, Thru-Bolts, 47" Leads
  • Weight (lbs.) : 20
  • Référence : A.O. Smith 9426, A.O. Smith F48H87A01, A.O. Smith F48M48A50, GE 5KCP39PGT377, Universal Electric 9426, Universal Electric HF3K034, Universal Electric HF3K7034, York 024-27670-000
