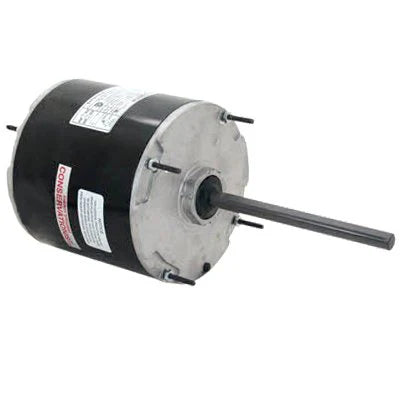

Century Condenser Fan Motors (HVAC/R) 5FE1056SV1 - 1/2 HP - 575 V - 1100 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) 5FE1056SV1 - 1/2 HP - 575 V - 1100 RPM - Single phase

$320.00 CAD
$320.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 5FE1056SV1

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1100

Voltage : 575 V

Phase : Single

Frame : 48

Mounting : Stud Mount

  • Horsepower : 1/2
  • Amps : 1.20
  • Frequency : 60 Hz
  • Length : 5-5/8"
  • "C" Dim. : 12-1/8"
  • Enclosure : Totally Enclosed, Air Over
  • Shaft Dim. : 1/2” x 6-1/2”
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 60°C
  • Capacitor Rating : 7.5MFD-370V
  • Feature(s) : Class 'B' Insulation, Reversing Plug, Thru-Bolts, 47" Leads
  • Weight (lbs.) : 17
  • Référence : A.O. Smith 9426, A.O. Smith F48H87A01, A.O. Smith F48M48A50, GE 5KCP39PGT377, Universal Electric 9426, Universal Electric HF3K034, Universal Electric HF3K7034, York 024-27670-000, M0026-1
