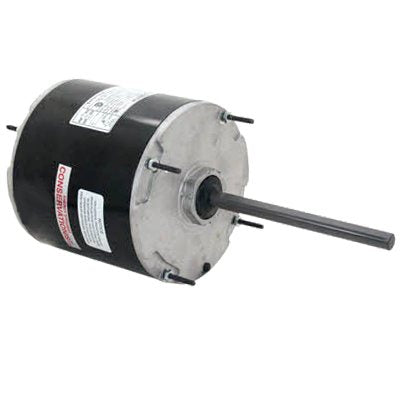

Century Condenser Fan Motors (HVAC/R) 5FE1054S - 1/2 HP - 575 V - 1625 RPM - Single phase

Century Condenser Fan Motors (HVAC/R) 5FE1054S - 1/2 HP - 575 V - 1625 RPM - Single phase

$469.00 CAD
$469.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 5FE1054S

Brand : Century

HVAC : Condenser Fan Motors (HVAC/R)

Horsepower : 1/2 HP

RPM : 1625

Voltage : 575 V

Phase : Single

Frame : 48

Mounting : Ring / Stud Mount

  • Horsepower : 1/2
  • Amps : 1.40
  • Frequency : 60 Hz
  • Length : 5-3/8”
  • "C" Dim. : 11-7/8"
  • Enclosure : Totally Enclosed, Air Over
  • Shaft Dim. : 1/2” x 6-1/2”
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 60°C
  • Capacitor Rating : 7.5MFD-440V
  • Feature(s) : Class 'B' Insulation, Thru-Bolts, 47" Leads
  • Weight (lbs.) : 13
  • Référence : A.O. Smith 9425, A.O. Smith F48H85A01, Universal Electric 9425, Universal Electric HF2J043, Universal Electric HF2J7043
