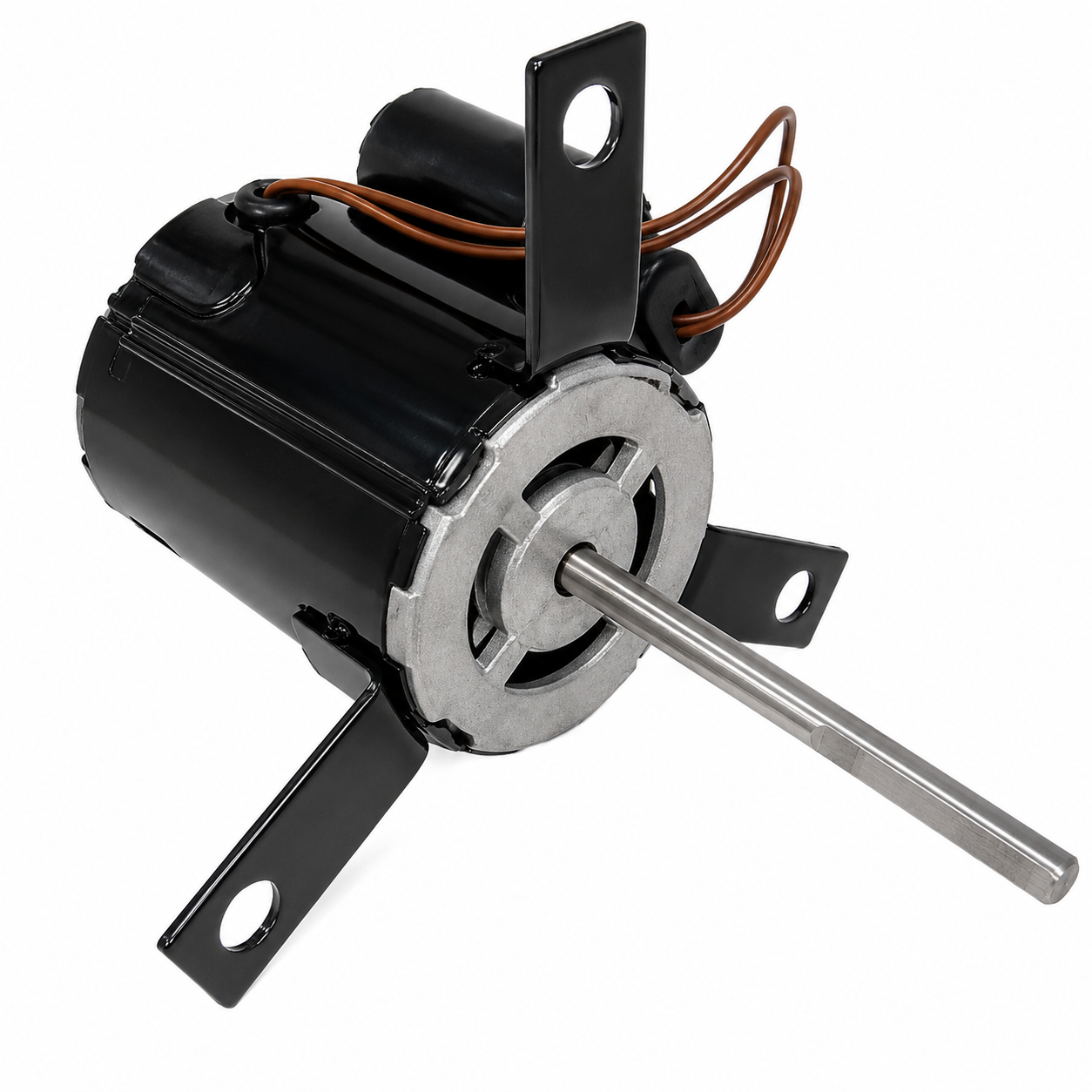

Emotortek OEM Replacement Motors (HVAC/R) 56346 - 1/4 HP - 115 V - 1550 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) 56346 - 1/4 HP - 115 V - 1550 RPM - Single phase

$238.00 CAD
$238.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 56346

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/4 HP

RPM : 1550

Voltage : 115 V

Phase : Single

Frame : 48

Mounting : Lug Mount

  • Horsepower : 0.27
  • Amps : 3.20/1.90
  • Frequency : 60 Hz
  • Length : 4-5/8”
  • Enclosure : Open
  • Shaft Dim. : 3/8” x 5-1/2”
  • Type : Permanent Split Capacitor
  • Speeds : 2
  • Diameter : 3.3”
  • Bearings : Ball
  • Rotation : CWSE
  • Protector : Thermally Protected
  • Ambient Temp. : 40°C
  • Feature(s) : 3 Lug Mounting
  • Weight (lbs.) : 8

  • Reference : Penn Barry Ventilation 56346-0, Century OPV346, Dayton 2D071, Fasco D346 7190-2904 71902904 7190-3480 71903480 7190-3521 71903521, MacMillan 429-483/3, Rotom R346, Universal Electric JE2K007 JE2K007N JE2K019 JE2K019N JE2K023 JE2K023N, Zephyr Z10S/H, Xactone X56346
