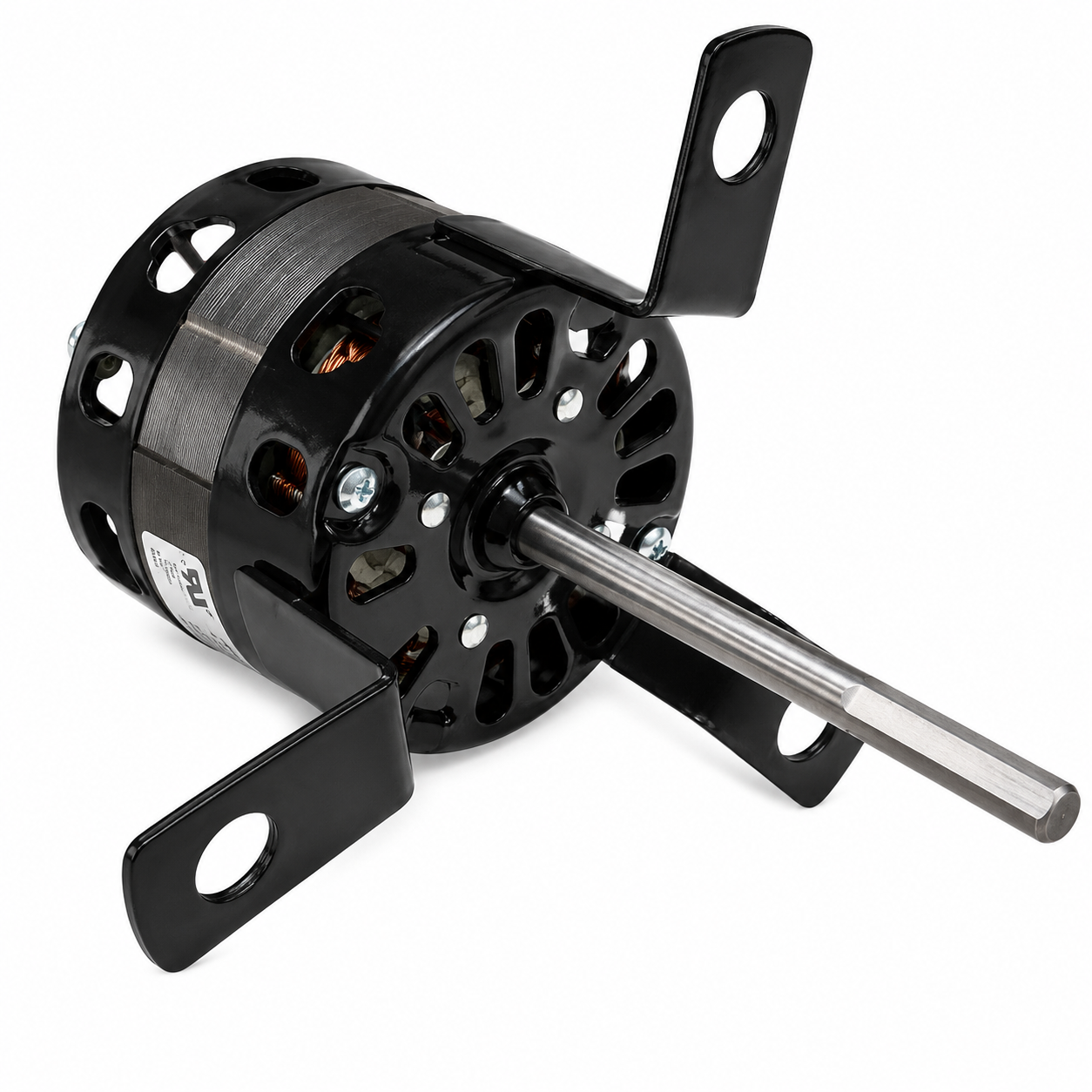

Emotortek OEM Replacement Motors (HVAC/R) 56344 - 1/12 HP - 115 V - 1550 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) 56344 - 1/12 HP - 115 V - 1550 RPM - Single phase

$193.00 CAD
$193.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 56344

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/12 HP

RPM : 1550

Voltage : 115 V

Phase : Single

Frame : 48

Mounting : Lug Mount

  • Horsepower : 0.08
  • Amps : 1.60/1.00
  • Frequency : 60 Hz
  • Length : 4-1/8”
  • Enclosure : Open
  • Shaft Dim. : 3/8” x 4-3/4”
  • Type : Permanent Split Capacitor
  • Speeds : 2
  • Diameter : 3.3”
  • Bearings : Ball
  • Rotation : CWSE
  • Protector : Thermally Protected
  • Ambient Temp. : 40°C
  • Feature(s) : 3 Lugs
  • Weight (lbs.) : 6
  • Reference : Penn Ventilation 56344-0 27603-0, Dayton 2D068, Fasco 7190-2899 71902899 7108-6985, MacMillan 429-483/2 429-482/46 S33A402TB-01, Universal Electric JE2H047N JE2H047, Zephyr Z8S/H, X56344
