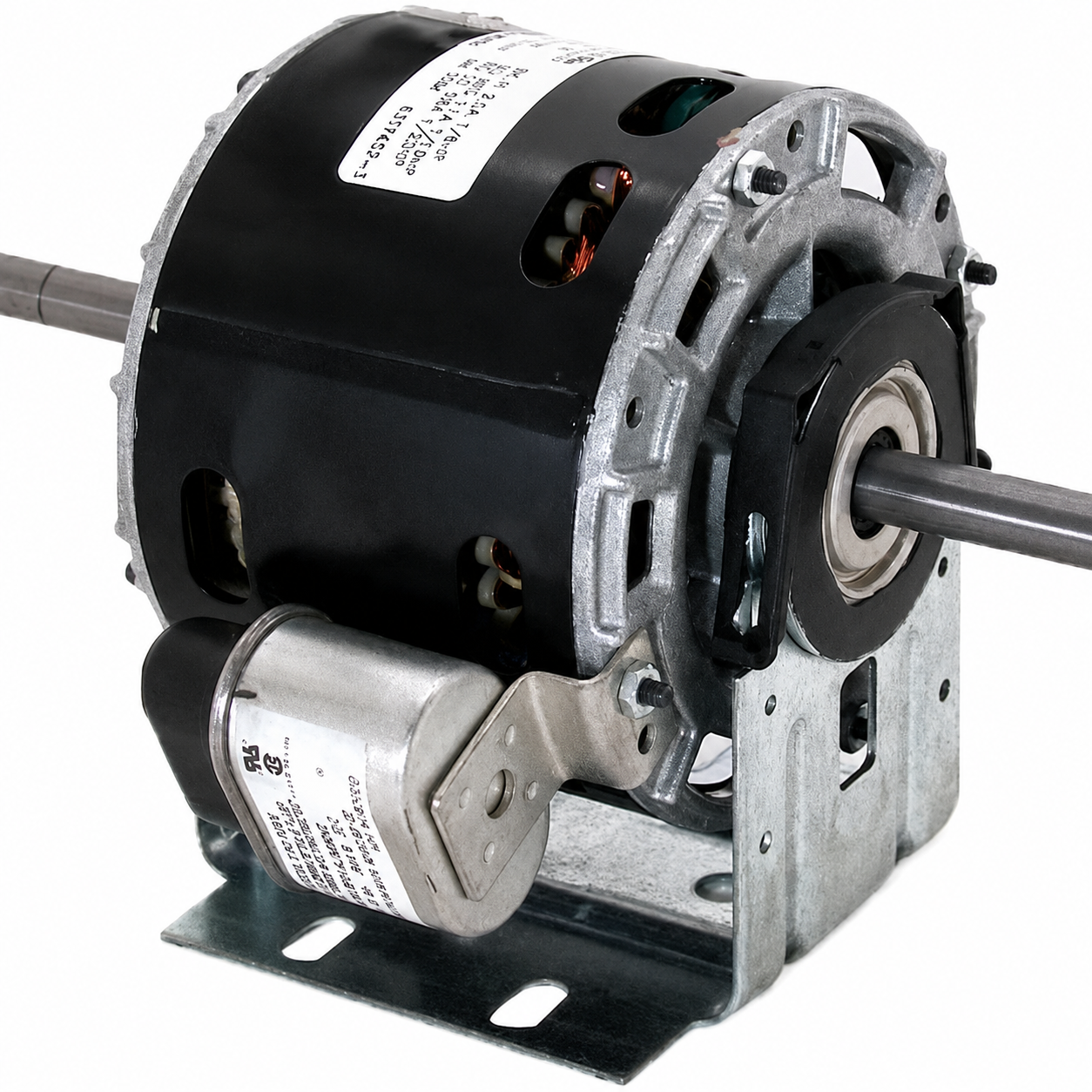

Century Fan Coil Motors (HVAC/R) 546A - 1/20 HP - 115 V - 1075 RPM - Single phase

Century Fan Coil Motors (HVAC/R) 546A - 1/20 HP - 115 V - 1075 RPM - Single phase

$439.00 CAD
$439.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 546A

Brand : Century

HVAC : Fan Coil Motors (HVAC/R)

Horsepower : 1/20 HP

RPM : 1075

Voltage : 115 V

Phase : Single

Frame : 42

Mounting : Resilient Base

  • Horsepower : 1/20
  • Amps : 0.78
  • Frequency : 60 Hz
  • Length : 3-1/2"
  • "C" Dim. : 24-7/8"
  • Enclosure : Open
  • Shaft Dim. : 10-11/16" x 1/2" x 10-11/16"
  • Type : Permanent Split Capacitor
  • Speeds : 4
  • Diameter : 5"
  • Bearings : Sleeve
  • Rotation : CWLE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 6MFD/370VAC
  • Feature(s) : Resilient Base, Class 'A' Insulation
  • Weight (lbs.) : 11
  • Référence : A.O. Smith 546, Emerson K48HXSNT1270, Emerson Stock No. 1090, General Electric 5KCP29BK165, 5KCP29BK692, Trane X70502750-010, Universal Electric 200-037, DE3B001, DE3B002, DE3B006, DE3B008, DE3B013, DE3B019, DE3B021, DE3B023, DE3D007, DE3D054, DE3D088, DE3D089, DE3D090, DE3D091, DE3D096, DE3D098, DE3D117, DE3D118, DE3D120, DE3D123, DE3D161, DE3D180, DE3D188, DE3D192, DE3D193, DE3D199, DE3D205, DE3D207, DE3D216, DE3D227, DE3D228, DE3D235, DE3D257, DE3D258, DE3D262, DE3D263, DE3D294, DE3D344, DE3E006, DE3E066, DE3E147, DE3E188, DE3E190, DE3E198, DE3D090N, U.S. Motors 1270.


View full details
