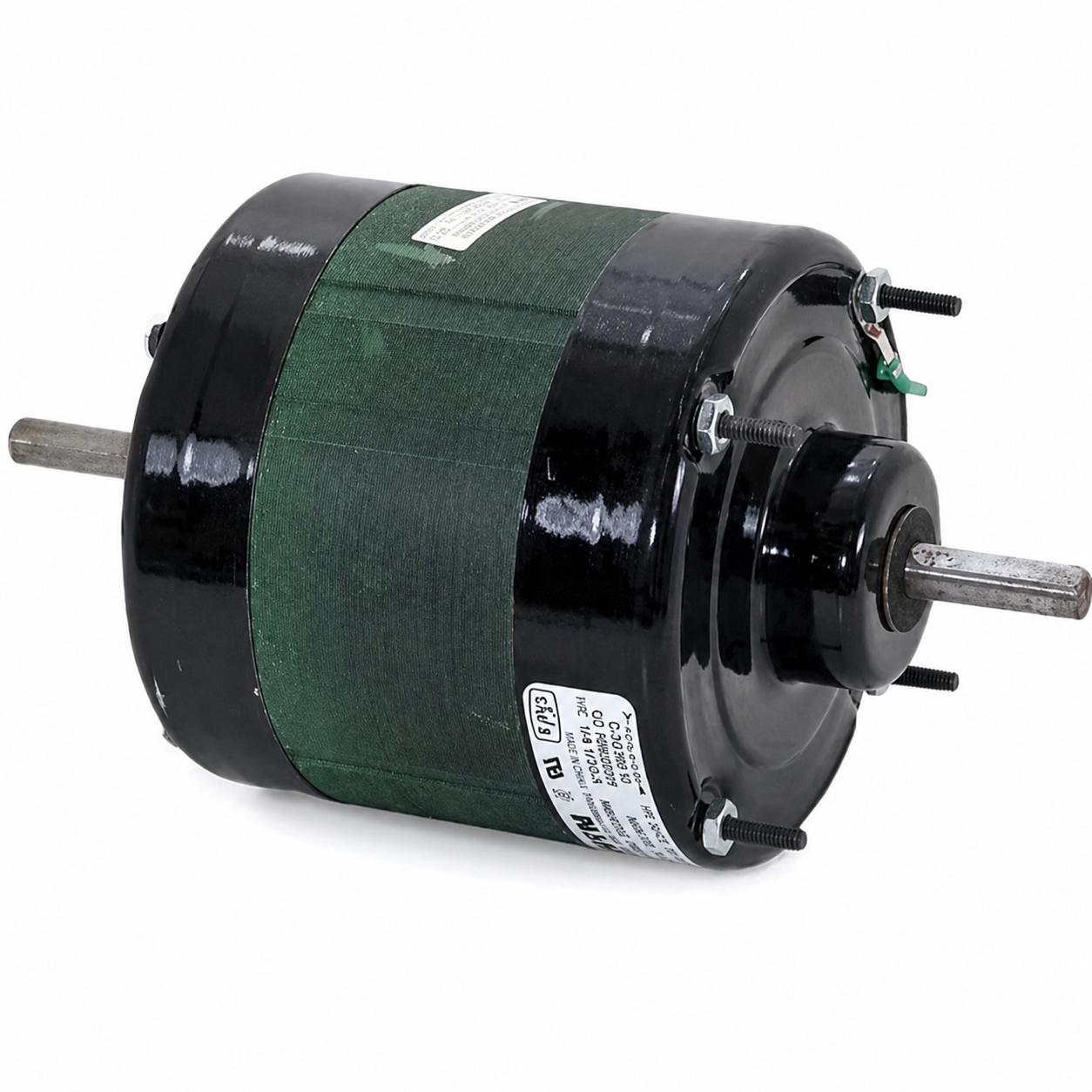

Century Fan Coil Motors (HVAC/R) 341 - 1/10 HP - 115/230 V - 1650 RPM - Single phase

Century Fan Coil Motors (HVAC/R) 341 - 1/10 HP - 115/230 V - 1650 RPM - Single phase

$422.00 CAD
$422.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 341

Brand : Century

HVAC : Fan Coil Motors (HVAC/R)

Horsepower : 1/10 HP

RPM : 1650

Voltage : 115/230 V

Phase : Single

Frame : 4.4

Mounting : Stud Mount

  • Horsepower : 1/10
  • Amps : 2.20 / 1.10
  • Frequency : 60 Hz
  • Length : 4.00"
  • "C" Dim. : 8.00"
  • Enclosure : Totally Enclosed Air Over
  • Shaft Dim. : 2.00" x 3/8" x 2.00"
  • Type : Shaded Pole
  • Speeds : 1
  • Diameter : 4.4"
  • Bearings : Ball
  • Rotation : CCWSE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Feature(s) : Hubs
  • Weight (lbs.) : 9
  • Référence : Fasco 7108-2122, Fasco 7108-2132, Fasco 7108-2237, Fasco 7108-2238, Fasco D115, Franklin 6117, Franklin 841310260, Franklin 8414010330, Franklin 8414310300, Franklin 844310300, Franklin U6102, Dayton 3M567, RMR H24CW25A
