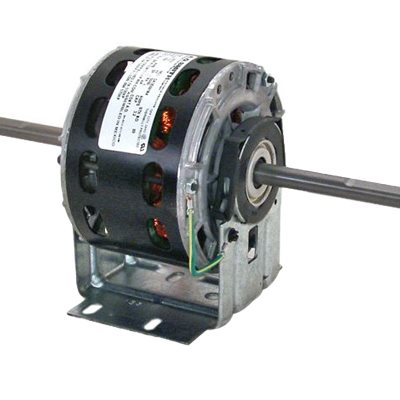

Century Fan Coil Motors (HVAC/R) 320 - 1/15 HP - 208/230 V - 1050 RPM - Single phase

Century Fan Coil Motors (HVAC/R) 320 - 1/15 HP - 208/230 V - 1050 RPM - Single phase

$293.00 CAD
$293.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 320

Brand : Century

HVAC : Fan Coil Motors (HVAC/R)

Horsepower : 1/15 HP

RPM : 1050

Voltage : 208/230 V

Phase : Single

Frame : 42

Mounting : Resilient Base

  • Amps : 1.30
  • Frequency : 60/50 Hz
  • Length : 3-1/4"
  • "C" Dim. : 20-7/8"
  • Enclosure : Open
  • Shaft Dim. : 8-7/8” x 1/2” x 8-7/8”
  • Type : Shaded Pole
  • Speeds : 3
  • Diameter : 5.00"
  • Bearings : Sleeve
  • Rotation : CWLE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Feature(s) : Class 'A' Insulation, Double Shaft, Resilient Base
  • Weight (lbs.) : 11
  • Référence : Fasco Cat no. 7151-0064, 7151-2264, 7151-2564, 7151-3015, Fasco Cat No. D153, D251, D655, Franklin 8426330109, 8725860170, Stelpro MO-025
