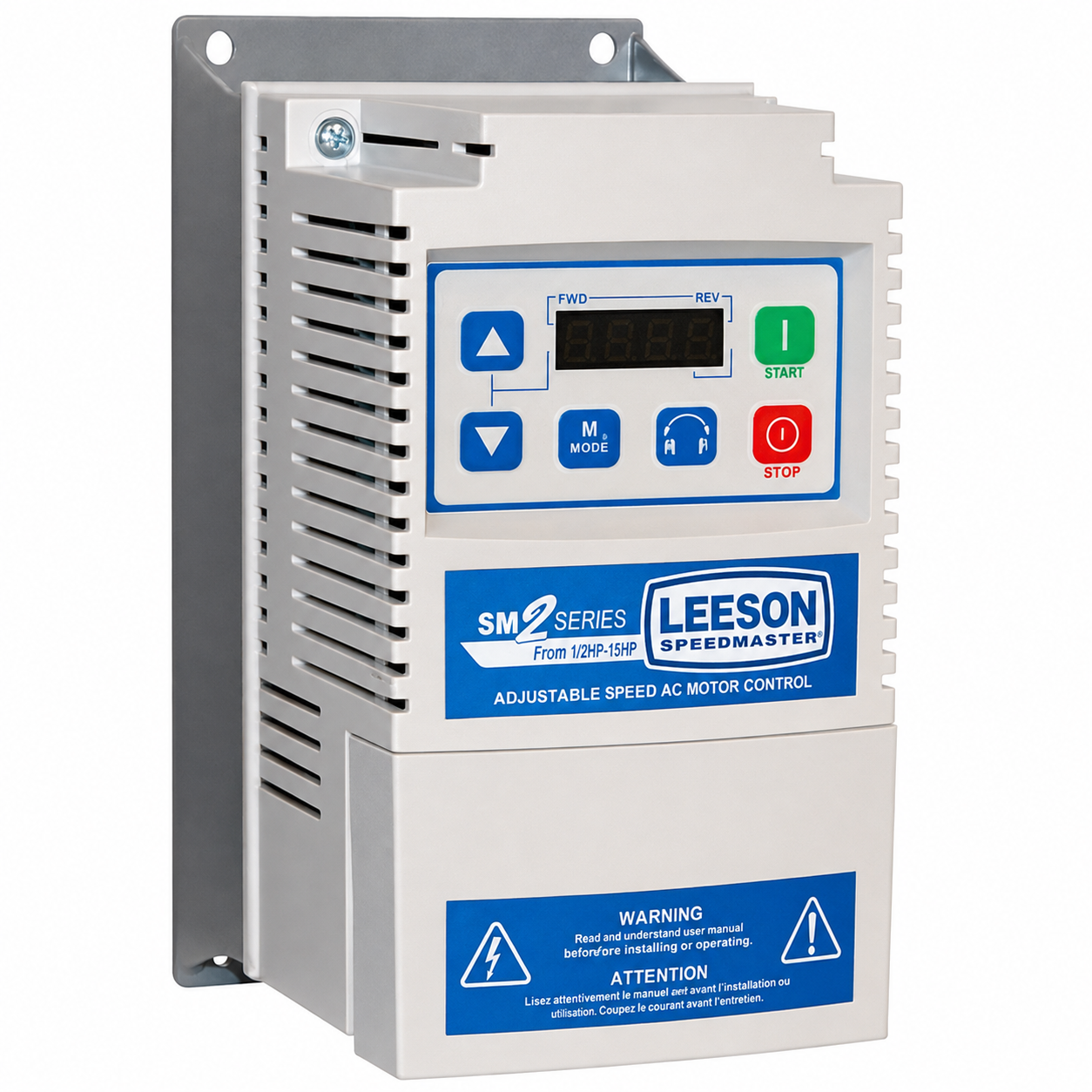

20HP LEESON SM2 VECTOR NEMA1 VFD 480-590V 3PH INPUT 174638.00

20HP LEESON SM2 VECTOR NEMA1 VFD 480-590V 3PH INPUT 174638.00

$3,100.00 CAD
$3,100.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 174638.00

Brand : Leeson

  • Product: Variable Frequency Drive (VFD)
  • Brand: Leeson
  • Model: 174638.00
  • Series: SM2 Flux Vector
  • Output Rating: 20 HP
  • Input Voltage: 480-590 V
  • Input Phase: Three phase
  • Output: Three phase
  • Output Current: 22 A
  • Enclosure: NEMA 1 / IP31
  • Approx. Product Weight: 20 lb
  • Drive Dimensions (H x W x D): 12.33 x 6.88 x 8.08 in
  • Flux vector control with Enhanced V/Hz and auto-tuning
  • 4-digit LED display and optional remote keypad support
