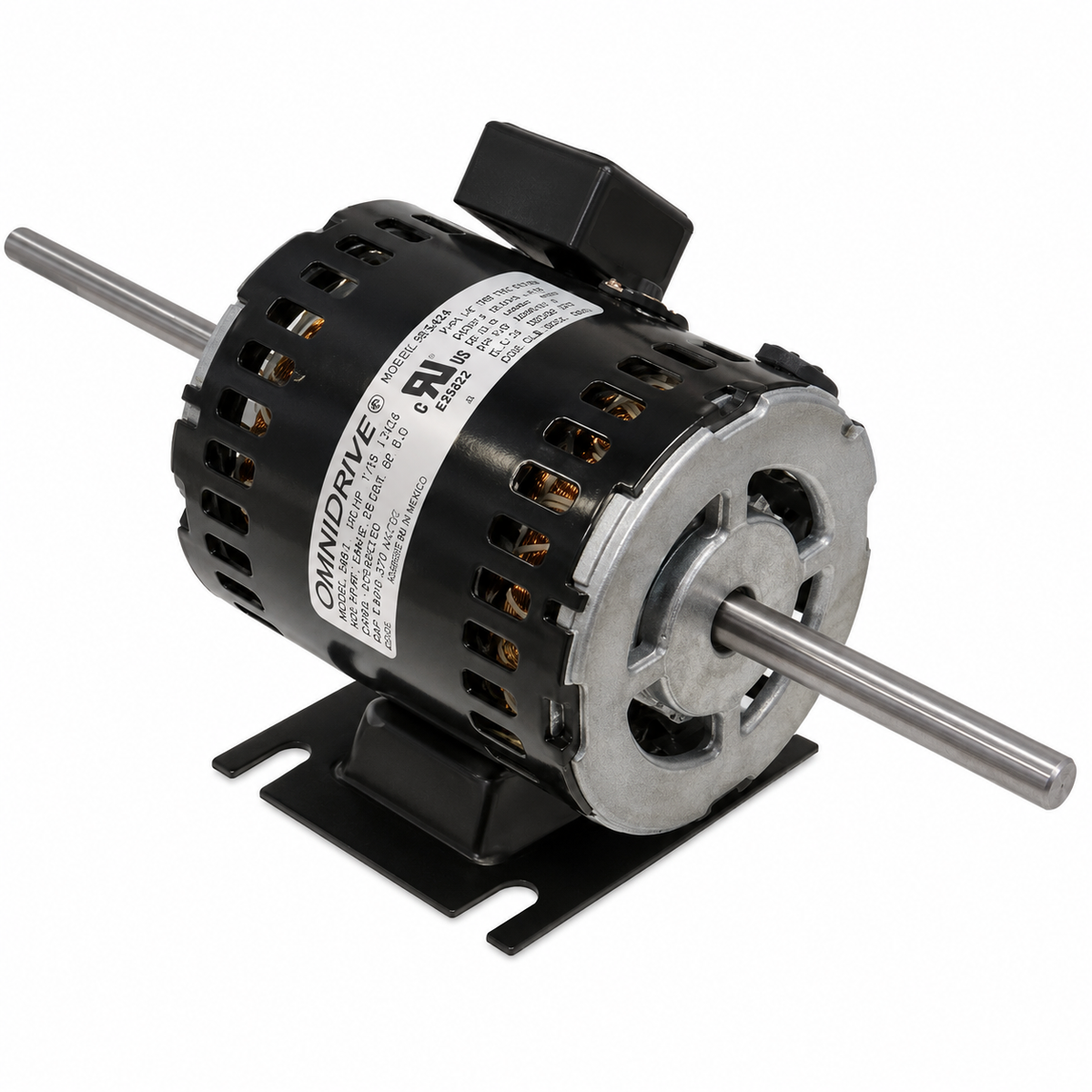

Emotortek OEM Replacement Motors (HVAC/R) 12027 - 1/12 HP - 120 V - 1625 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) 12027 - 1/12 HP - 120 V - 1625 RPM - Single phase

$279.00 CAD
$279.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 12027

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/12 HP

RPM : 1625

Voltage : 120 V

Phase : Single

Frame : 48

Mounting : Rigid Base

  • Horsepower : 1/12
  • Amps : 1.20
  • Frequency : 60 Hz
  • Length : 4-1/8”
  • Enclosure : Open
  • Shaft Dim. : 3-1/2” x 3/8” x 3-9/16”
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 3.3”
  • Bearings : Sleeve
  • Rotation : CWLE
  • Protector : Thermally Protected
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Feature(s) : Capacitor Included, Welded Base, Double Shaft
  • Weight (lbs.) : 6
  • Reference : Venmar OEM Replacement Fasco 7190-2271 7190-0921 7190-2784 71902784 7190-1359 71901359, General Electric 5KCP84DFK149P, Rotom R2-R462, 02100, 1206, 12151, HVR2100, ELESM366
