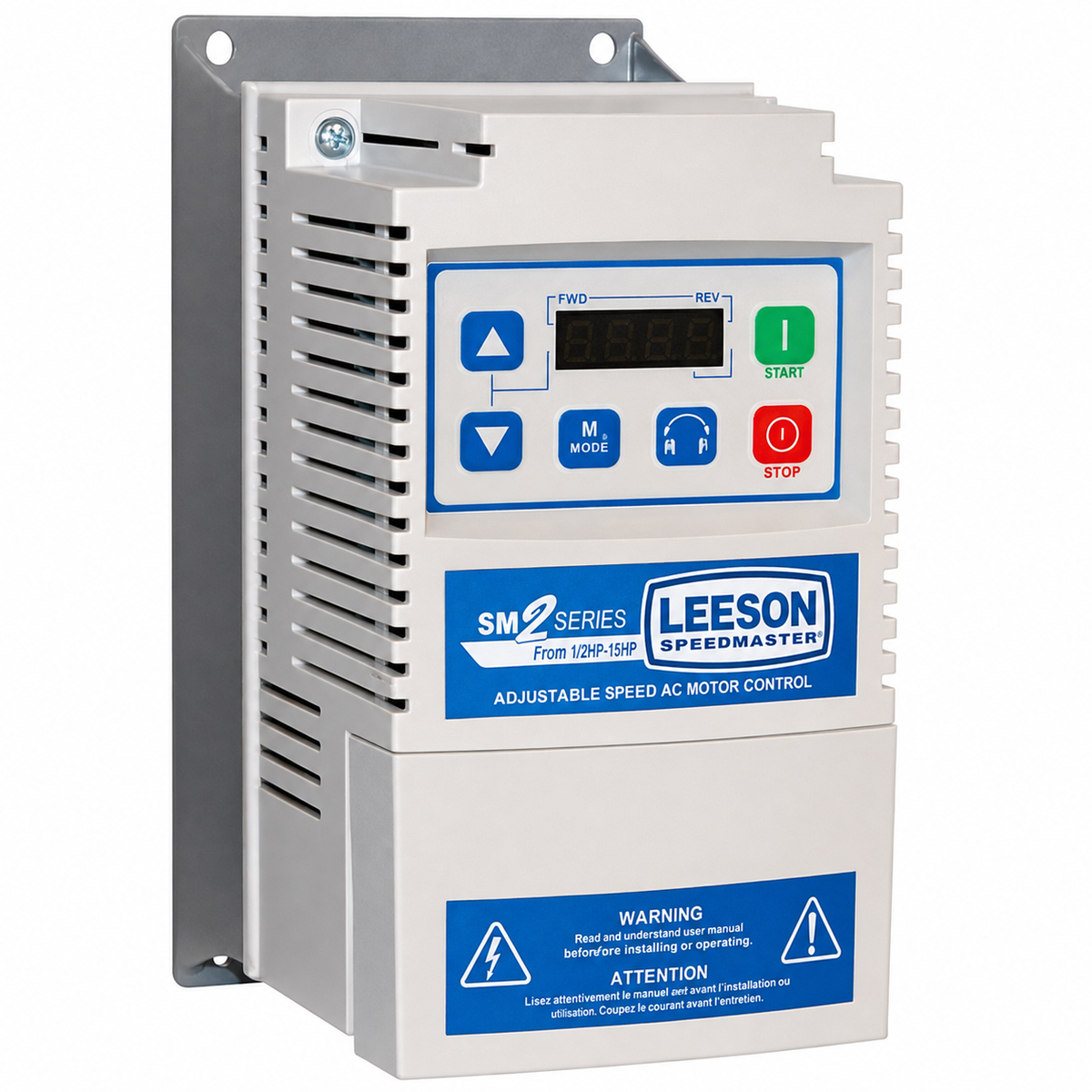

1/2 HP LEESON SM2 VECTOR NEMA1 VFD 400-480V 3PH INPUT 174620.00

1/2 HP LEESON SM2 VECTOR NEMA1 VFD 400-480V 3PH INPUT 174620.00

$680.00 CAD
$680.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : 174620.00

Brand : Leeson

Horsepower : 1/2 HP

  • Product: Variable Frequency Drive (VFD)
  • Brand: Leeson
  • Model: 174620.00
  • Series: SM2 Flux Vector
  • Output Rating: 1/2 HP
  • Input Voltage: 400-480 V
  • Input Phase: Three phase
  • Output: Three phase
  • Output Current: 1.1 A
  • Enclosure: NEMA 1 / IP31
  • Approx. Product Weight: 3 lb
  • Drive Dimensions (H x W x D): 7.5 x 3.9 x 4.35 in
  • Flux vector control with Enhanced V/Hz and auto-tuning
  • 4-digit LED display and optional remote keypad support
