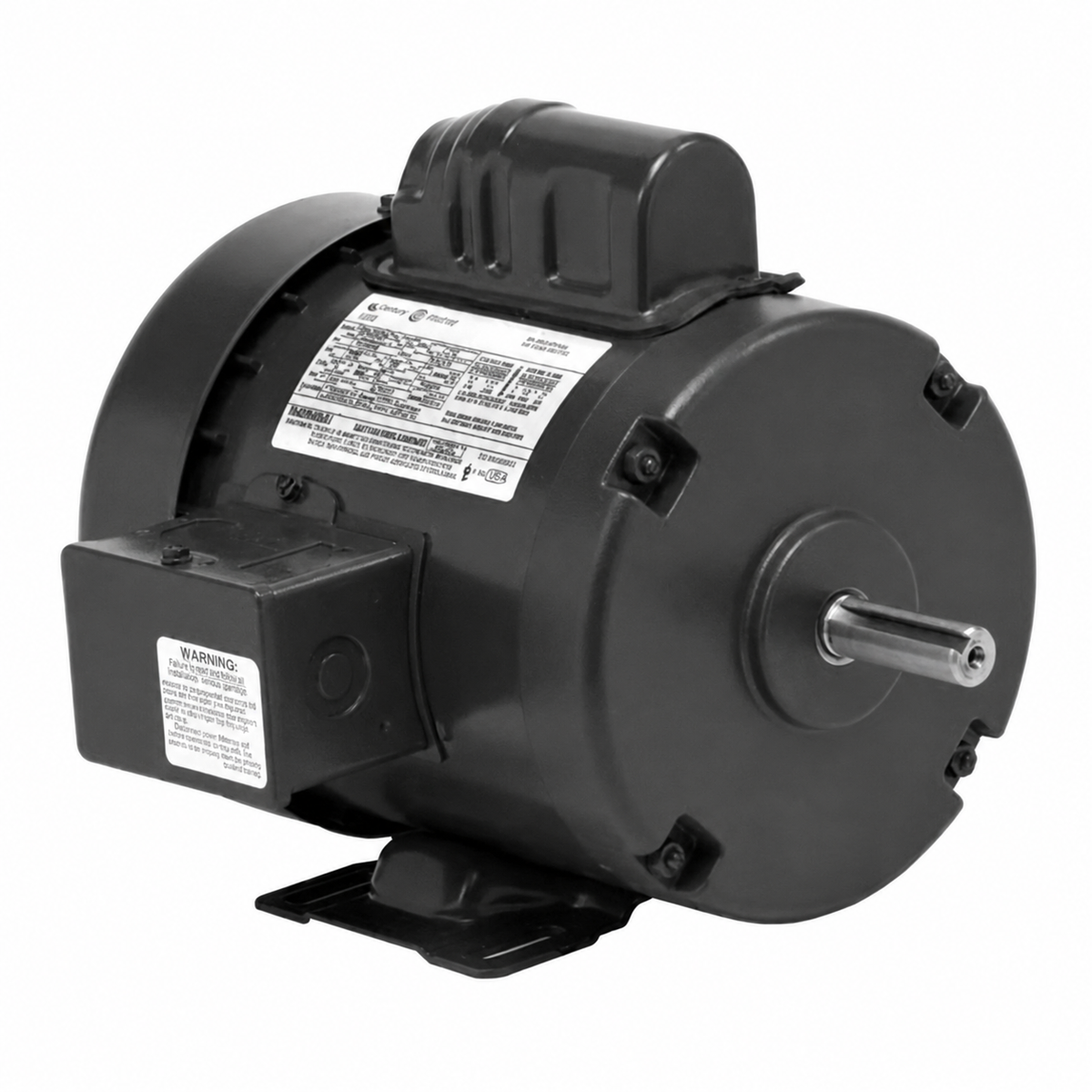

US Motors General Purpose Motors (HVAC/R) T32CM1JH - 1.5 HP - 115/208-230 V - 3450 RPM - Single phase

US Motors General Purpose Motors (HVAC/R) T32CM1JH - 1.5 HP - 115/208-230 V - 3450 RPM - Single phase

$506.00 CAD
$506.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : T32CM1JH

Brand : US Motors

HVAC : General Purpose Motors (HVAC/R)

Horsepower : 1.5 HP

RPM : 3450

Voltage : 115/208-230 V

Phase : Single

Frame : 56H

Mounting : Rigid Base

  • Horsepower :1.5
  • Voltage :115/208-230
  • Amps :14.6/8.1-7.4
  • RPM :3450
  • Frequency :60 HZ
  • "C" Dim. :12.89"
  • Enclosure :TEFC
  • Type :Cap Start, Cap Run
  • Frame :56H
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Manual
  • Service Factor :1.15
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :30 mfd @ 370 volt
  • Feature(s) :Class B Insulation
  • Weight (lbs.) :34
