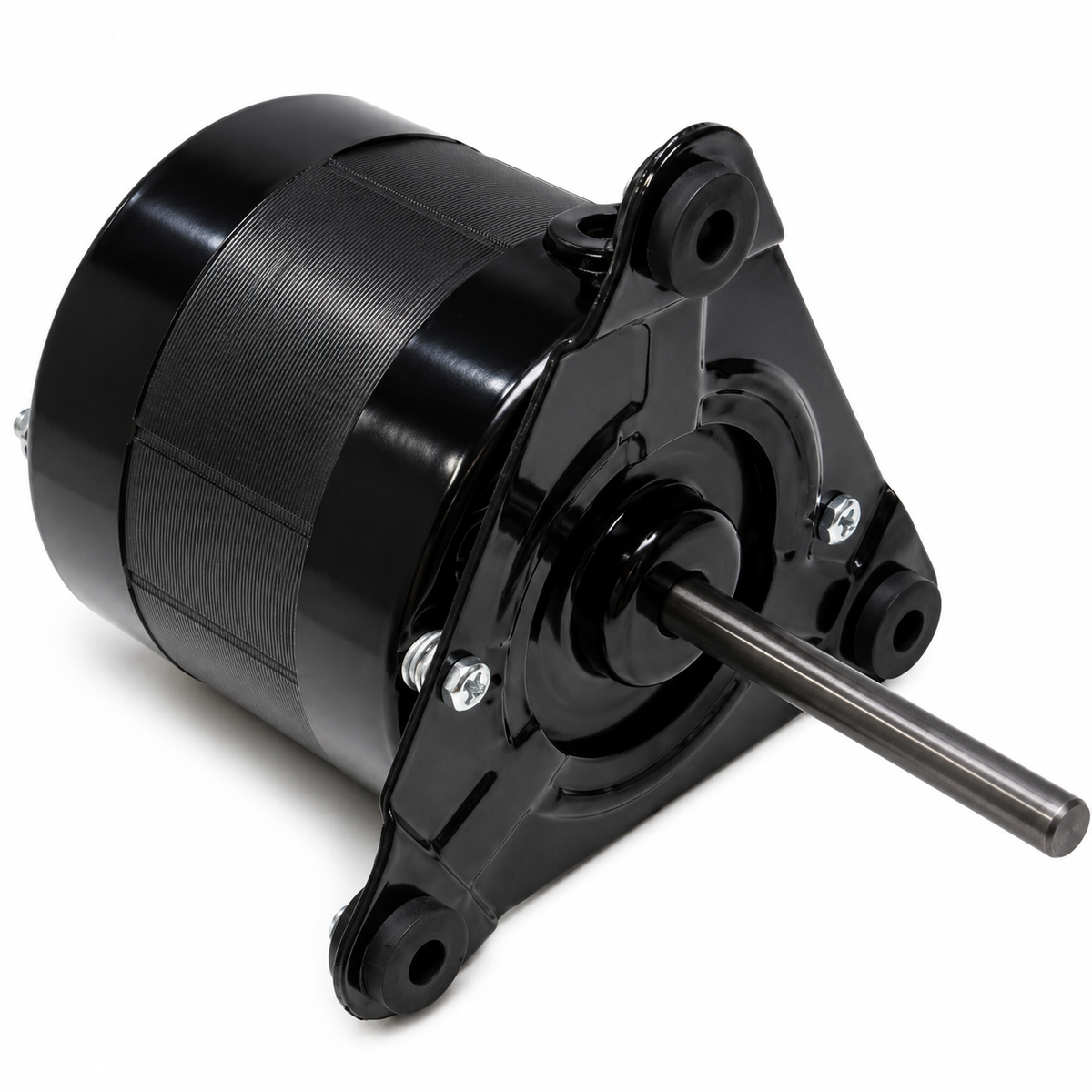

Emotortek OEM Replacement Motors (HVAC/R) SS213 - 1/25 HP - 115 V - 1550 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS213 - 1/25 HP - 115 V - 1550 RPM - Single phase

$109.00 CAD
$109.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications :

Model : SS213

Brand : Emotortek

HVAC : OEM Replacement Motors (HVAC/R)

Horsepower : 1/25 HP

RPM : 1550

Voltage : 115 V

Phase : Single

Frame : 48

Mounting : Bracket Mount

  • Horsepower : 1/25
  • Amps : 1.40
  • Frequency : 60 Hz
  • Length : 3-3/32”
  • Enclosure : Totally Enclosed
  • Shaft Dim. : 5/16” x 1-25/32”
  • Type : Shaded Pole
  • Diameter : 3.3”
  • Bearings : Sleeve
  • Rotation : CWSE
  • Protector : Thermally Protected
  • Ambient Temp. : 40°C
  • Feature(s) : Conduit Box, Triangle Bracket
  • Weight (lbs.) : 4
  • Reference : Chromalox 01513-001, Electrohome 13-53-12-03, 13-54-12-01, 17-54-12-04, 17-54-12-05, 2818-510-810 2818-511-004 2868-511-008 2818-511-012 2818-541-005 2818-541-010 2818-541-011 2818-541-016 2818-541-211 2818-541-006 2818-541-207 2818-541-211 2818-541-214 2828-531-203 2828-531-207 2828-541-203 2867-513-075 2868-511-016 2868-511-020 2868-513-003 2868-513-006 2868-513-008 2868-513-011 2868-513-014 2868-513-019 2868-513-034 2868-513-041 2868-513-044 2868-513-045 2868-513-046 2868-513-048 2868-513-049 2868-513-059 2868-513-075 2868-513-077 2868-513-088 2868-513-092 2868-513-149 2868-813-001 SM213 SM302,  Fasco 7163-7875 D184 D189, Franklin 76213 8214115068 8214117050 8214117219 8214117249 AK4L150A, MacMillan 8214115068 8214115163, Rotom 06-R213 R213, Universal Electric AA2R5555
