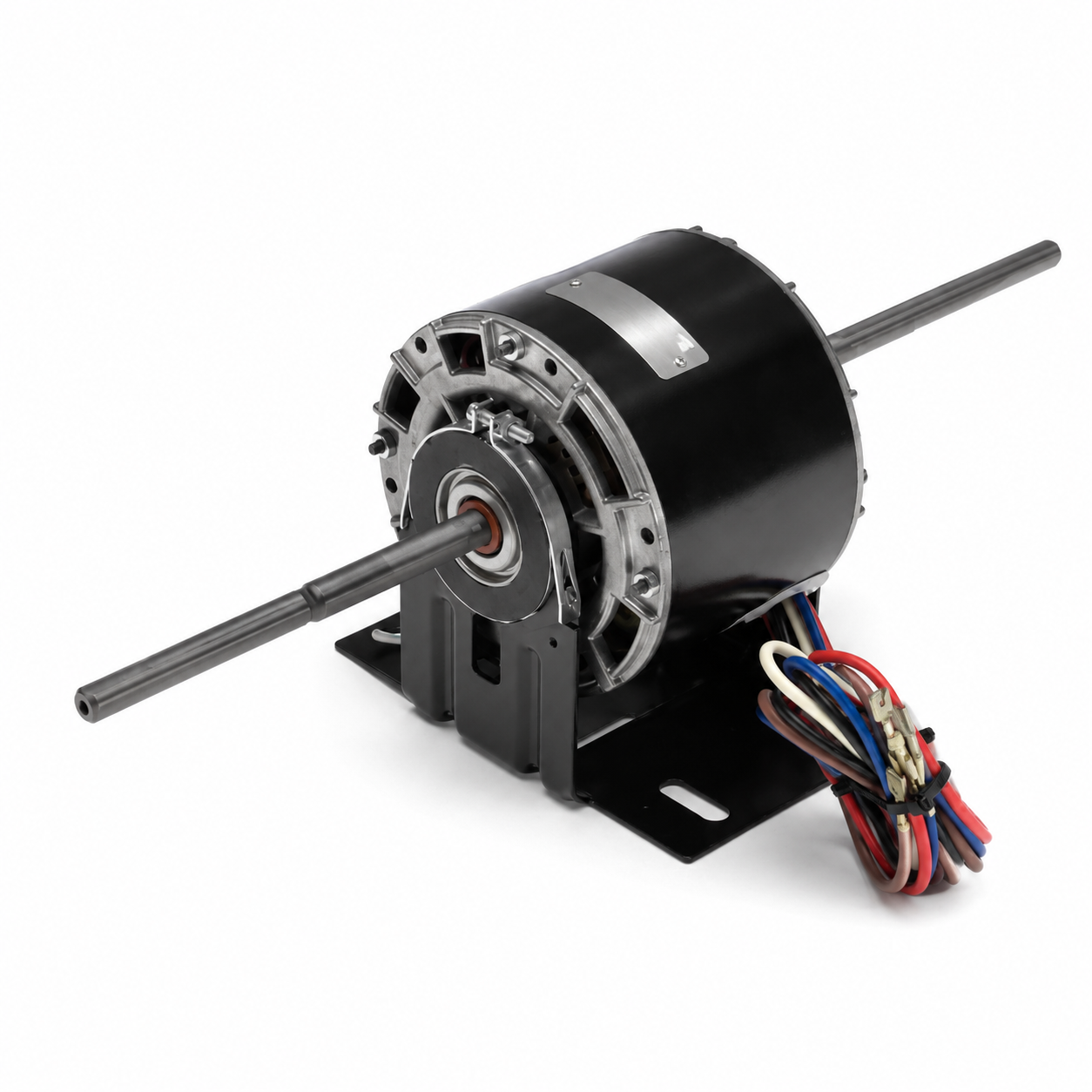

Century OEM Replacement Motors (HVAC/R) 638 - 1/10 HP - 115 V - 1695 RPM - Single phase
Century OEM Replacement Motors (HVAC/R) 638 - 1/10 HP - 115 V - 1695 RPM - Single phase

Century OEM Replacement Motors (HVAC/R) 638 - 1/10 HP - 115 V - 1695 RPM - Single phase

Century
Sold out
$295.00
Shipping calculated at checkout.
Quantity must be 1 or more
  • Horsepower :1/10
  • Voltage :115
  • Amps :0.87
  • RPM :1695
  • Frequency :60 Hz
  • Length :3-3/4"
  • "C" Dim. :16-3/4"
  • Enclosure :Open Air Over
  • Shaft Dim. :6-1/2" x 3/8" x 6-1/2"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5.0"
  • Frame :42
  • Bearings :Sleeve
  • Rotation :CWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :4MFD-370V
  • Feature(s) :Class 'B' Insulation, Double Shaft, Continuous Duty, Class 'B' Insulation, Resilient Base
  • Weight (lbs.) :9
  • Reference : A.O. Smith Century DBL4500V1, A.O. Smith 322P497, A.O. Smith DBL4500, A.O. Smith F42D53A01, Ice Cap DE2E132, Ice Cap DE2E188, Ice Cap ELB1271, Universal Electric DE2E132, Universal Electric DE2E7188, U.S. Motors 1256
