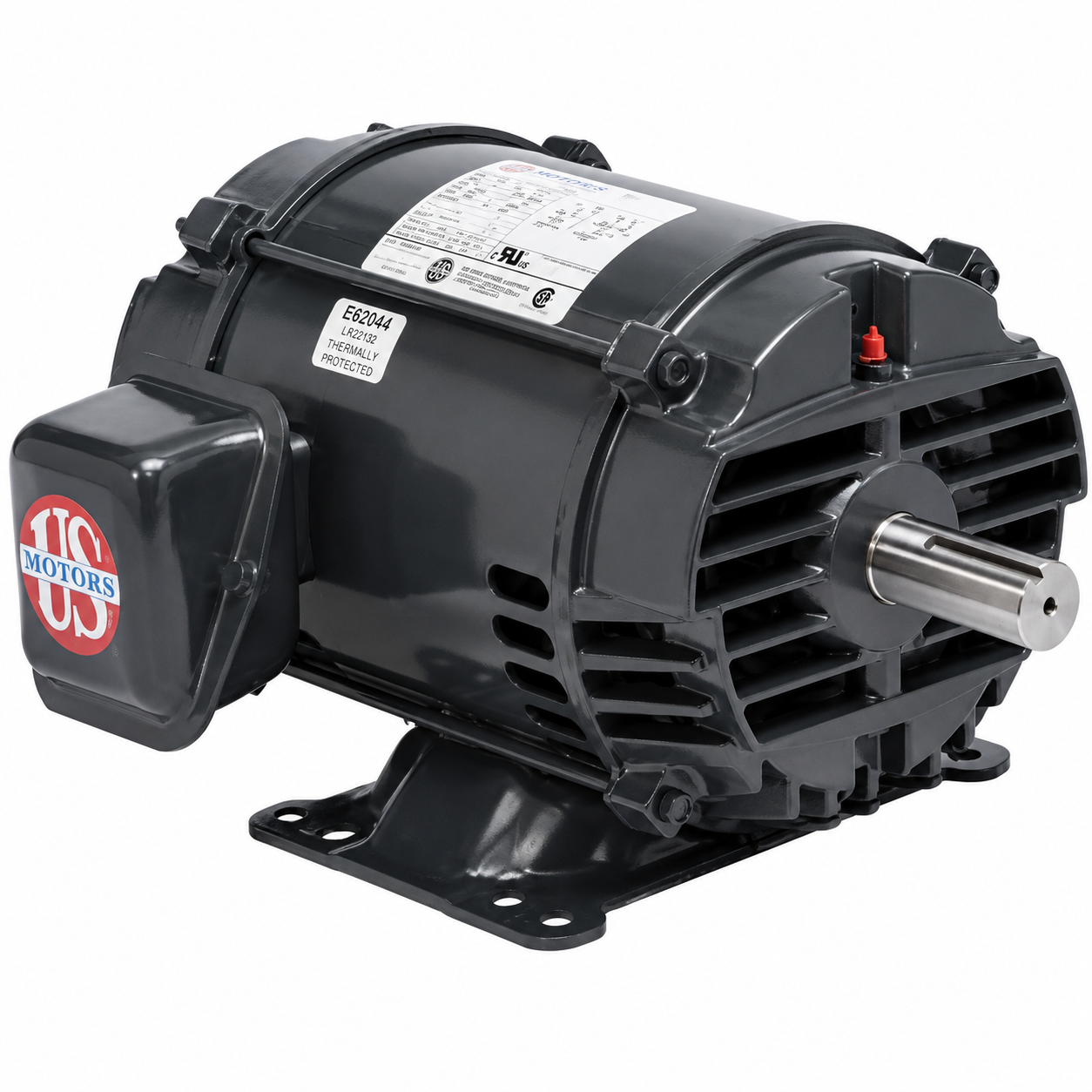

US Motors Three Phase Motor (HVAC/R) D3P2D - 3 HP - 230/460 V - 1800 RPM - Three phase

Horsepower : 3
Voltage : 208-230 / 460
Amps : 8.40 / 7.80 / 3.90
RPM : 1800
Frequency : 60 Hz
"C" Dim. : 13.69"
Enclosure : Open Drip-Proof
Shaft Dim. : 1-1/8" X 2-1/2"
Type : Three Phase
Speeds : 1
Diameter : 6-1/2"
Frame : 182T
Efficiency : 89.5%
Bearings : Ball
Rotation : Reversible
Protector : None
Service Factor : 1.15
Phase : 3
Ambient Temp. : 40°C
Feature(s) : Rigid Base, Class 'F' Insulation - Class 'B' Rise at Service Factor, F-1 Assembly, Aluminum End-Shields with Steel Inserts, Light Weight Rolled Steel Frame, Suitable for use with Inverters (VFD), Double Shielded Bearings, Regreasable Bearings
Weight (lbs.) : 50
