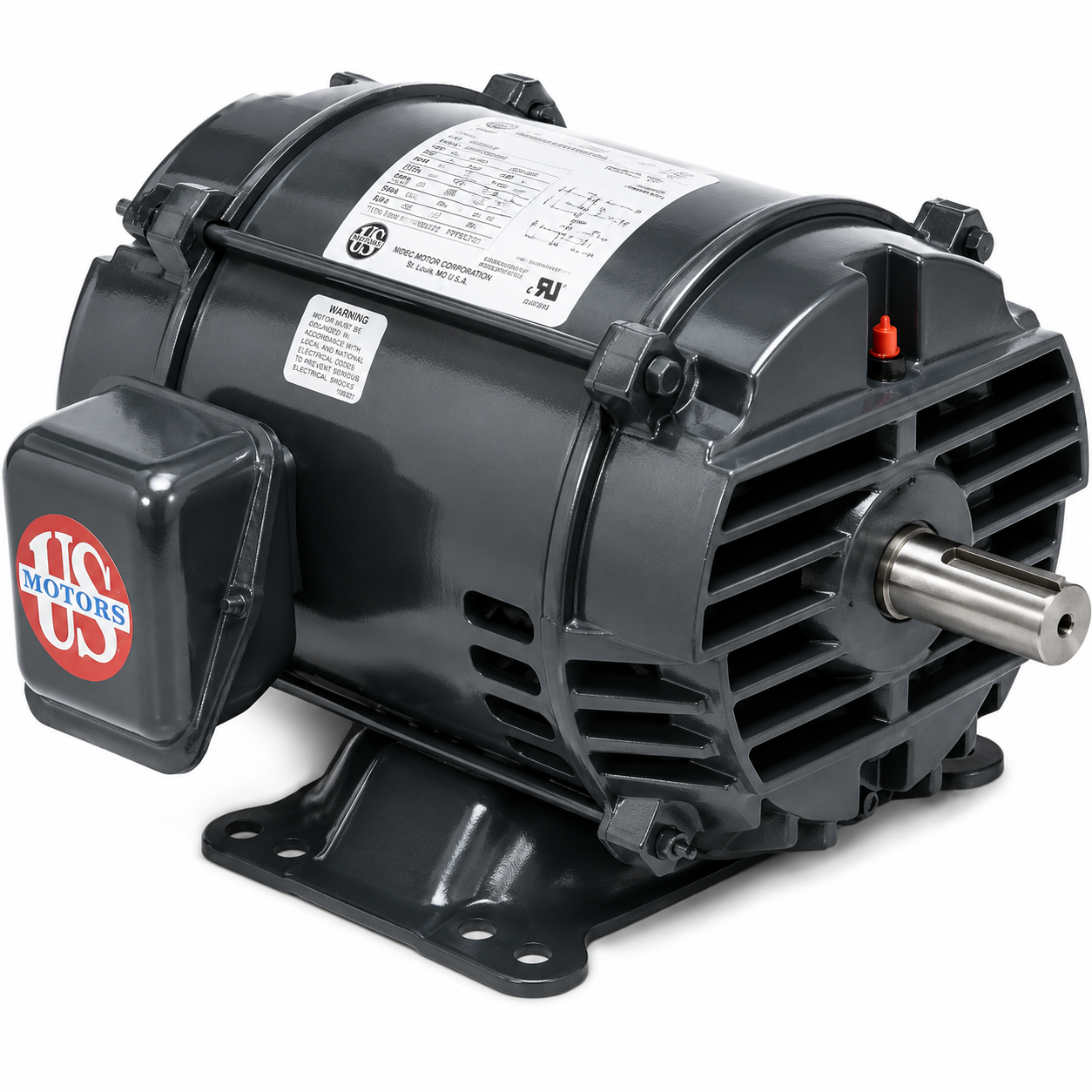

US Motors Three Phase Motor (HVAC/R) D15P2G - 15 HP - 575 V - 1800 RPM - Three phase

US Motors Three Phase Motor (HVAC/R) D15P2G - 15 HP - 575 V - 1800 RPM - Three phase

$1,645.00 CAD
$1,645.00 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Spécifications :

Numéro de modèle : D15P2G

Marque : US Motors

CVC : Three Phase Motor (HVAC/R)

Puissance : 15 HP

Tours par minute : 1800

Voltage : 575 V

Phase : Three

Cadre : 254T

Montage : Rigid Base

  • Horsepower :15
  • Voltage :575
  • Amps :14.80
  • RPM :1800
  • Frequency :60 Hz
  • "C" Dim. :22.56"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :1-5/8" x 3-3/4"
  • Type :Three Phase
  • Speeds :1
  • Frame :254T
  • Efficiency :93.0%
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :None
  • Service Factor :1.15
  • Phase :3
  • Ambient Temp. :40°C
  • Feature(s) :Rigid Base, Class 'F' Insulation - Class 'B' Rise at Service Factor, F-1 Assembly, Aluminum End-Shields with Steel Inserts, Light Weight Rolled Steel Frame, Suitable for use with Inverters (VFD), Double Shielded Bearings, Regreasable Bearings, Lifting Provisions
  • Weight (lbs.) :150
