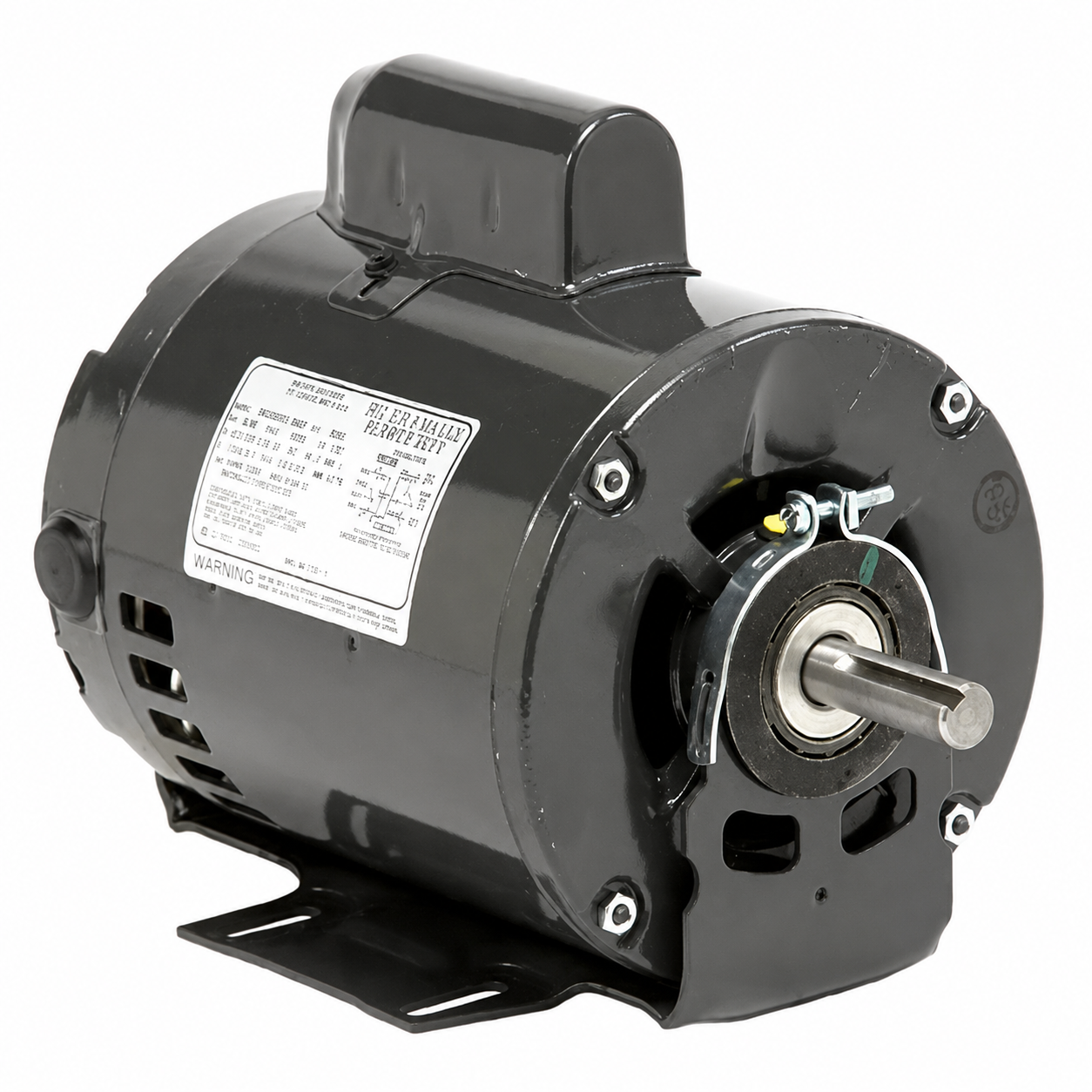

US Motors General Purpose Motors (HVAC/R) D13CP2Z49 - 1/3 HP - 115/230 V - 1725 RPM - Single phase
US Motors General Purpose Motors (HVAC/R) D13CP2Z49 - 1/3 HP - 115/230 V - 1725 RPM - Single phase
Impossible de charger la disponibilité du service de retrait
Numéro de modèle : D13CP2Z49
Marque : US Motors
CVC : General Purpose Motors (HVAC/R)
Puissance : 1/3 HP
Tours par minute : 1725
Voltage : 115/230 V
Phase : Single
Cadre : 48
Montage : Resilient Base
• HP: 1/3
• Voltage: 115 / 230
• RPM: 1725
• Current (Amp): 3.80 / 1.90
• Phase: 1
• Rotation: Reversible
• Frame: 48
• Enclosure: Open Drip Proof
• Speeds: 1
• Protector: No Protection
• Ambient Temp: 40°C
• Service Factor: 1.35
• Shaft Dimensions: 0.50 in X 1.50 in
• Frequency: 50/60Hz
• Diameter: 5.5 in
• Frame Length: 9.91 in
• Bearings: Ball
• Capacitor Rating: 25-370
• Features: class b insulation, resilient base mount, 1/2" diameter shaft with flat, capacitor required: 25 mfd-370 volts (supplied with motor)
• Reference : Century C105L
