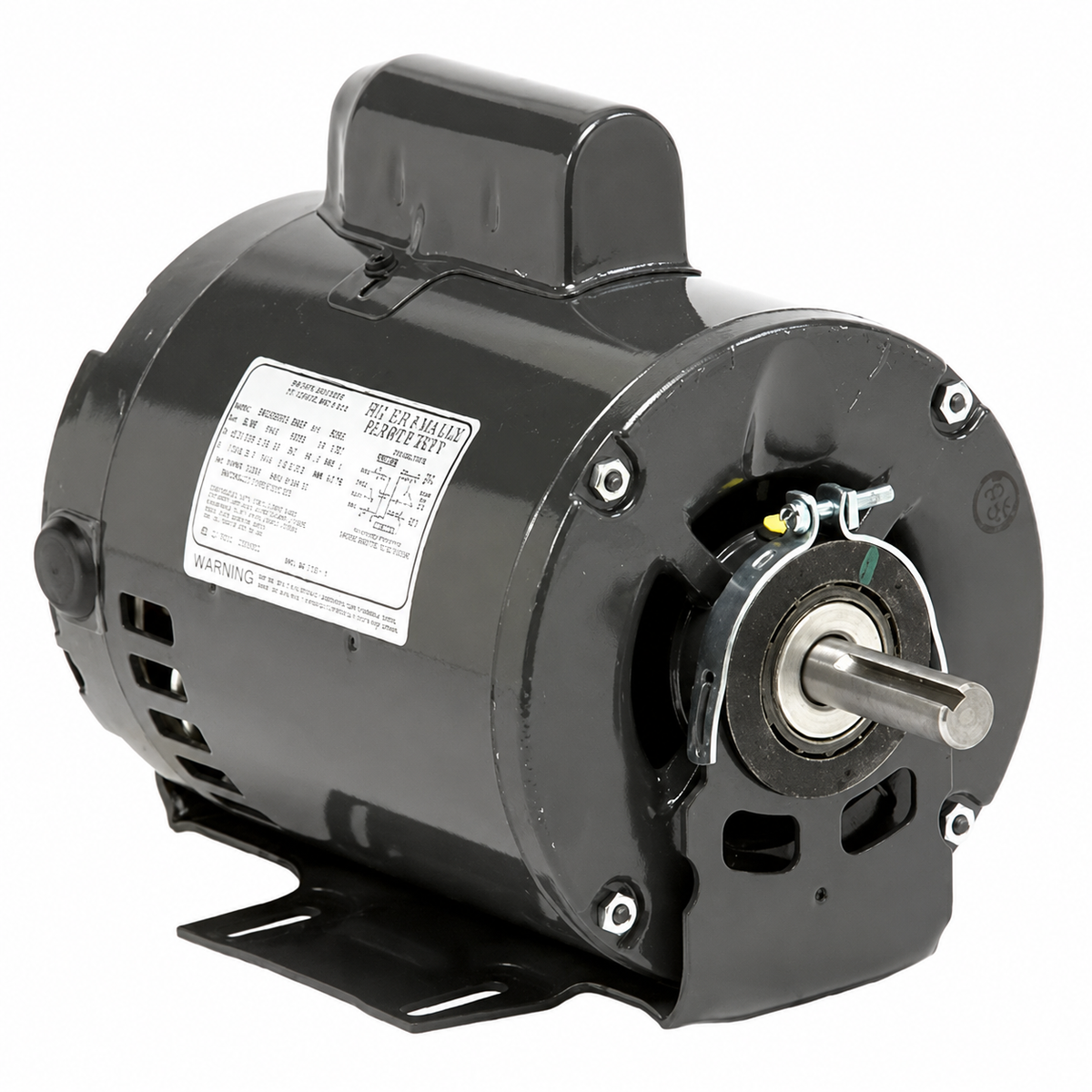

US Motors General Purpose Motors (HVAC/R) D12CP3PH9 - 1/2 HP - 115/230 V - 1140 RPM - Single phase
US Motors General Purpose Motors (HVAC/R) D12CP3PH9 - 1/2 HP - 115/230 V - 1140 RPM - Single phase
Impossible de charger la disponibilité du service de retrait
Numéro de modèle : D12CP3PH9
Marque : US Motors
CVC : General Purpose Motors (HVAC/R)
Puissance : 1/2 HP
Tours par minute : 1140
Voltage : 115/230 V
Phase : Single
Cadre : 56H
Montage : Resilient Base
• HP: 1/2
• Voltage: 115 / 230
• RPM: 1140
• Current (Amp): 4.80 / 2.40
• Phase: 1
• Rotation: Reversible
• Frame: 56H
• Enclosure: Open Drip Proof
• Speeds: 1
• Protector: No Protection
• Ambient Temp: 40°C
• Service Factor: 1.25
• Shaft Dimensions: 0.625 in X 1.88 in
• Frequency: 60Hz
• Diameter: 6.5 in
• Frame Length: 12.31 in
• Bearings: Ball
• Capacitor Rating: 40-370
• Features: class b insulation, resilient base mount, 5/8" diameter keyed shaft, capacitor required: 40 mfd-370 volts (supplied with motor)
