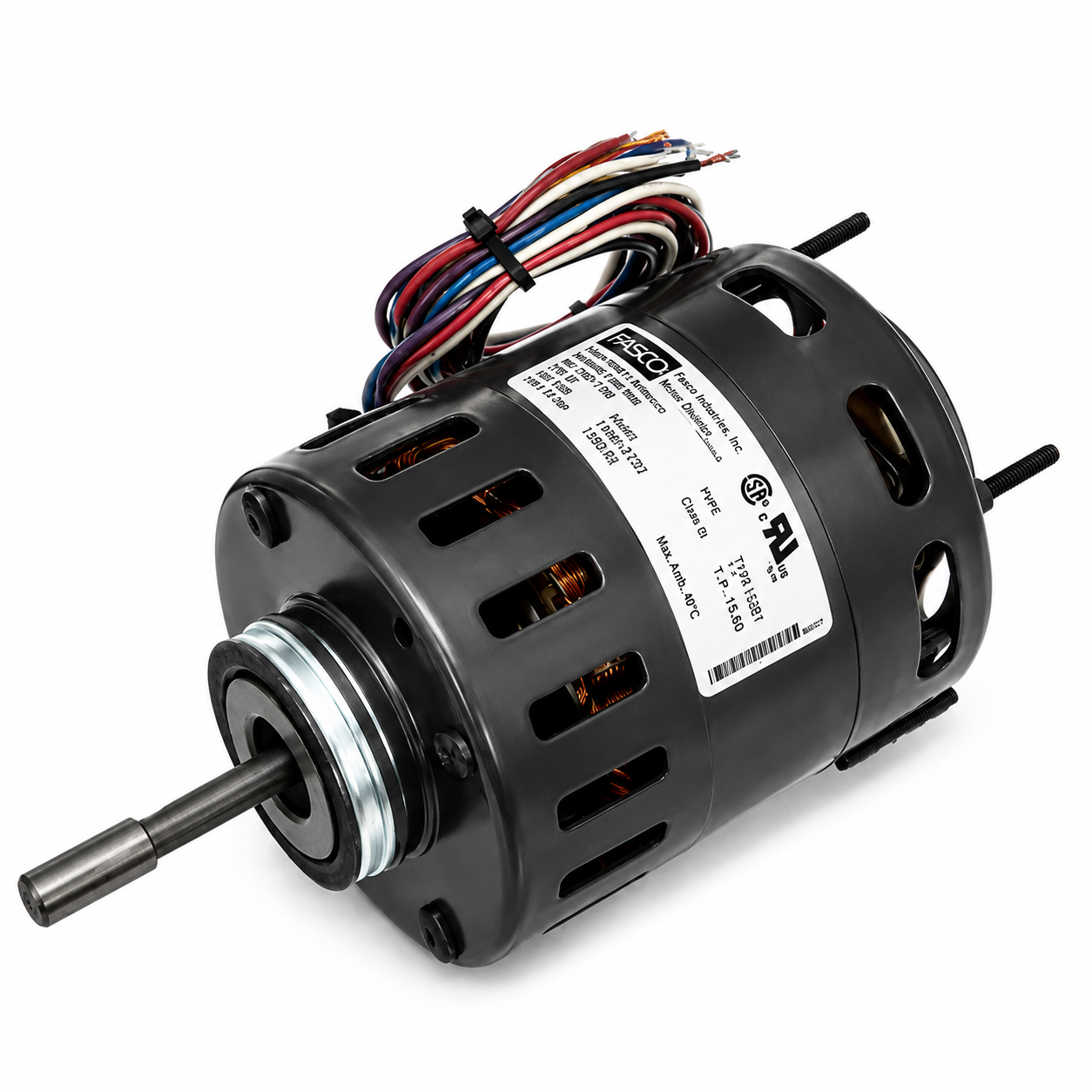

Fasco Refrigeration Motors (HVAC/R) D482 - 1/15 HP - 115/208-230 V - 1550 RPM - Single phase
Fasco Refrigeration Motors (HVAC/R) D482 - 1/15 HP - 115/208-230 V - 1550 RPM - Single phase
Impossible de charger la disponibilité du service de retrait
Numéro de modèle : D482
Marque : Fasco
CVC : Refrigeration Motors (HVAC/R)
Puissance : 1/15 HP
Tours par minute : 1550
Voltage : 115/208-230 V
Phase : Single
Cadre : 4.4
Montage : Ring / Stud Mount
• HP: 1/15
• Voltage: 115/208-230
• RPM: 1550
• Current (Amp): 3.2/1.6
• Phase: 1
• Rotation: Clockwise Shaft End
• Frame: 4.4
• Enclosure: Open Air Over
• Speeds: 1
• Protector: Thermally Protected
• Ambient Temp: 40°C
• Service Factor: 1.00
• Shaft Dimensions: 0.375 in X 3.15 in
• Frequency: 60Hz
• Diameter: 4.4 in
• Frame Length: 4.81 in
• Bearings: Sleeve
• Features: class b insulation, 31" leads, extended studs opposite shaft end, resilient mounting rings, enclosed shaft end end-frame, open opposite shaft end end-frame and shell, air over
• Reference : A.O.Smith 612, Century 612A, Fasco 7108-6369 7108-6271 7108-6369 D06123, Franklin 8414260101, Rotom R2942, General Electric 2241 2242, Universal Electric DA2E110N DA2G033N
