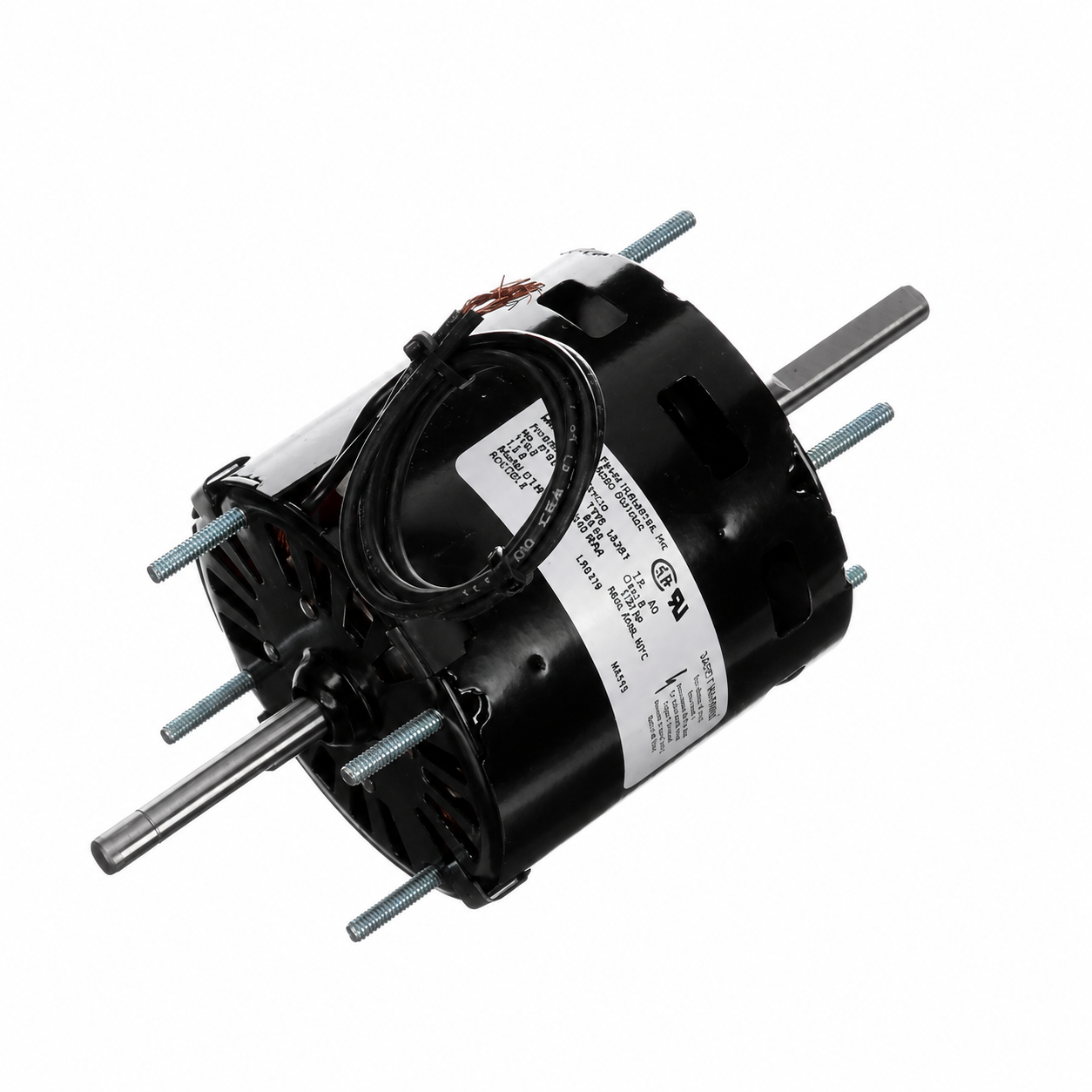

Fasco Fan & Blower Motors (HVAC/R) D136 - 1/30 HP - 115 V - 1500 RPM - Single phase
Fasco Fan & Blower Motors (HVAC/R) D136 - 1/30 HP - 115 V - 1500 RPM - Single phase
Impossible de charger la disponibilité du service de retrait
Numéro de modèle : D136
Marque : Fasco
CVC : Fan & Blower Motors (HVAC/R)
Puissance : 1/30 HP
Tours par minute : 1500
Voltage : 115 V
Phase : Single
Cadre : 3.3
Montage : Stud Mount
• HP: 1/30
• Voltage: 115
• RPM: 1500
• Current (Amp): 1.30
• Phase: 1
• Rotation: Clockwise Lead End
• Frame: 3.3
• Enclosure: Open Air Over
• Speeds: 1
• Protector: Thermally Protected
• Ambient Temp: 40°C
• Service Factor: 1.00
• Shaft Dimensions: 0.313 in X 2.00 in X 0.313 in
• Frequency: 60Hz
• Diameter: 3.3 in
• Frame Length: 2.95 in
• Bearings: Sleeve
• Features: class b insulation, 12" leads, extended studs shaft end and lead end, open lead end end-frame, enclosed opposite lead end end-frame, semi-enclosed shell.
• Reference : A.O.Smith 359, Fasco 7063-7444 7163-2149 7163-2584 7163-4909 7063-3222 7063-3294 7063-6489 7063-7444 7163-1424 7163-3829 7163-4144, OmniDrive SS467, Rotom R470, 18U
