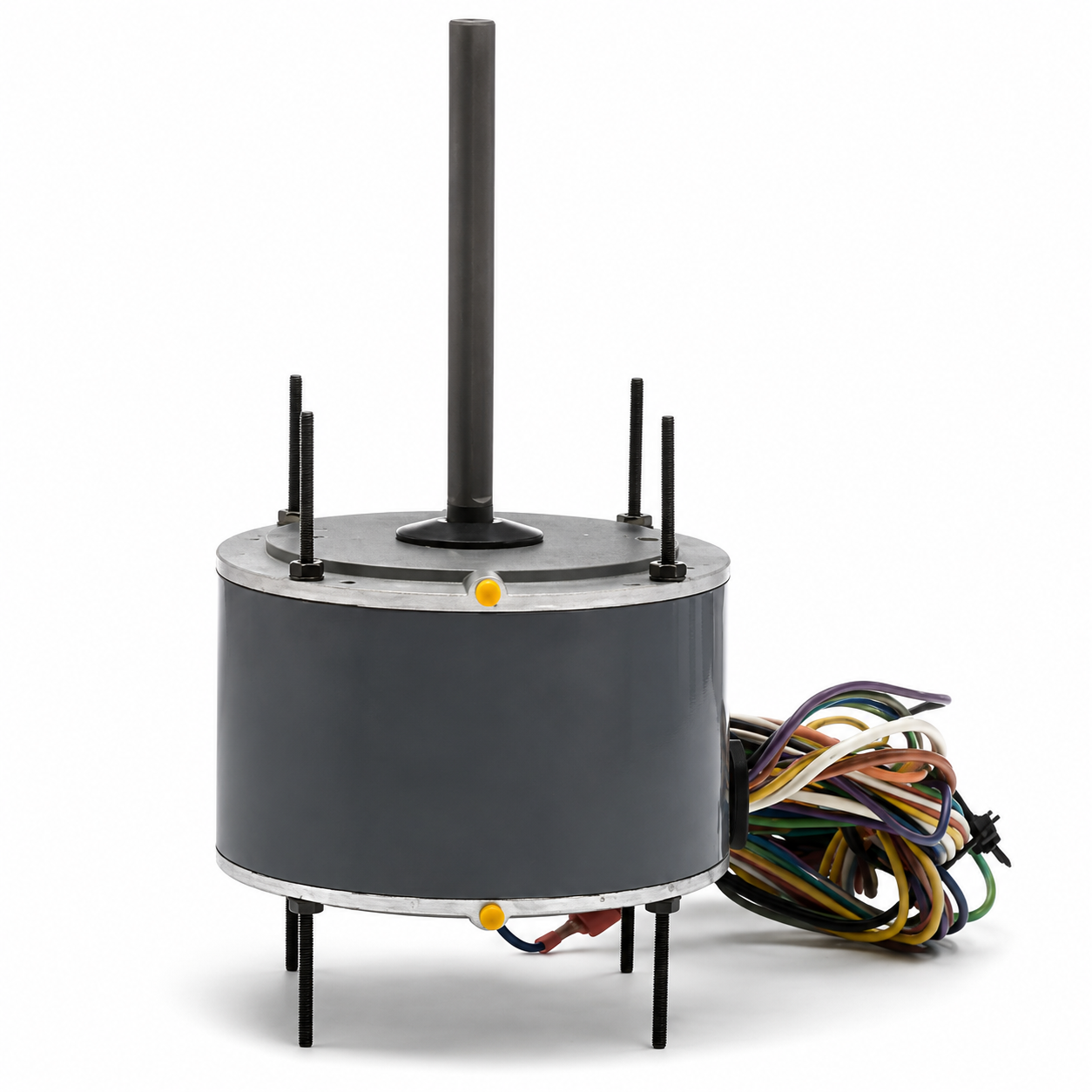

Fasco Condenser Fan Motors (HVAC/R) D919 - 1/8 HP - 208/230 V - 1075 RPM - Single phase
Fasco Condenser Fan Motors (HVAC/R) D919 - 1/8 HP - 208/230 V - 1075 RPM - Single phase
Impossible de charger la disponibilité du service de retrait
Numéro de modèle : D919
Marque : Fasco
CVC : Condenser Fan Motors (HVAC/R)
Puissance : 1/8 HP
Tours par minute : 1075
Voltage : 208/230 V
Phase : Single
Cadre : 48
Montage : Stud Mount
• HP: 1/8
• Voltage: 208-230
• RPM: 1075
• Current (Amp): 0.79
• Phase: 1
• Rotation: Reversible
• Frame: 48
• Enclosure: Totally Enclosed Air Over
• Speeds: 1
• Protector: Automatic
• Ambient Temp: 40°C
• Service Factor: 1.00
• Shaft Dimensions: 0.500 in X 6.0 in
• Frequency: 60Hz
• Diameter: 5.5 in
• Frame Length: 3.74 in
• Bearings: Sleeve
• Capacitor Rating: 5-44
• Features: class b insulation, 55" leads, extended studs shaft end and lead end, mounting holes in shell, belly band mount (belly band not included), required: 5 mfd-370 volts (not supplied with motor)
