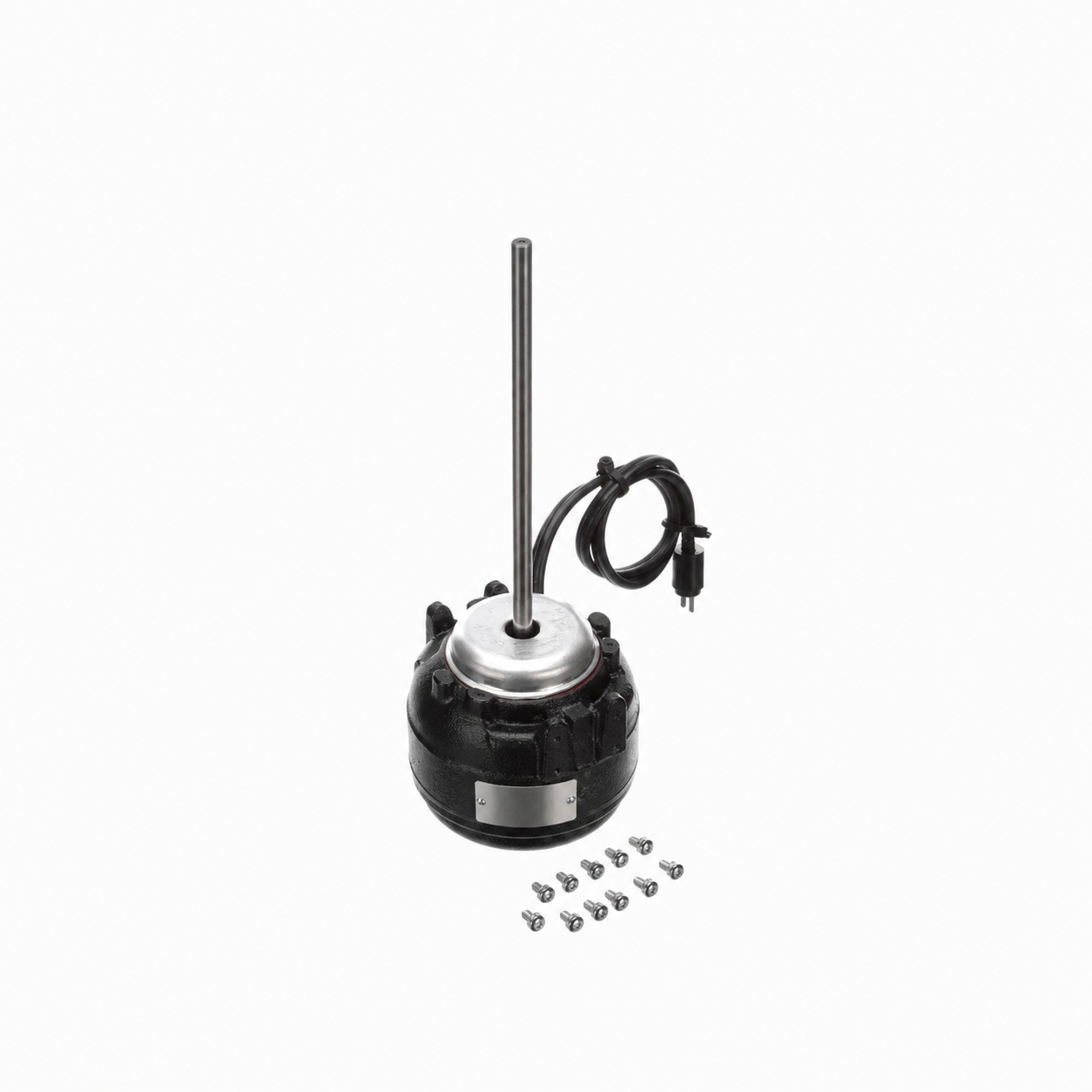

Century Refrigeration Motors (HVAC/R) 277 - 15 Watt - 115 V - 1500 RPM - Single phase

• HP : 15 Watt
• Voltage : 115
• RPM : 1500
• Current (Amp) : 0.60
• Phase : 1
• Rotation : Counterclockwise Lead End
• Frame : Unit Bearing
• Enclosure : Totally Enclosed Air Over
• Speeds : 1
• Protector : Thermally Protected
• Ambient Temp : 40°C
• Service Factor : 1.00
• Shaft Dimensions : 0.312 in X 7 in
• Frequency : 60Hz
• Diameter : 3.3 in
• Frame Length : 3.77 in
• Bearings : Unit
• Features : Class A Insulation, 22 in Leads, Tapped Double Boss, 3 Tapped Holes Opposite Shaft End
• Reference : A.O. Smith 24-0366, A.O. Smith ESPOL15EMJR11, A.O. Smith OKL7500, EMS ESPOL15EMJR11, General Electric152, Gibson Kelvinator 24-0366,
