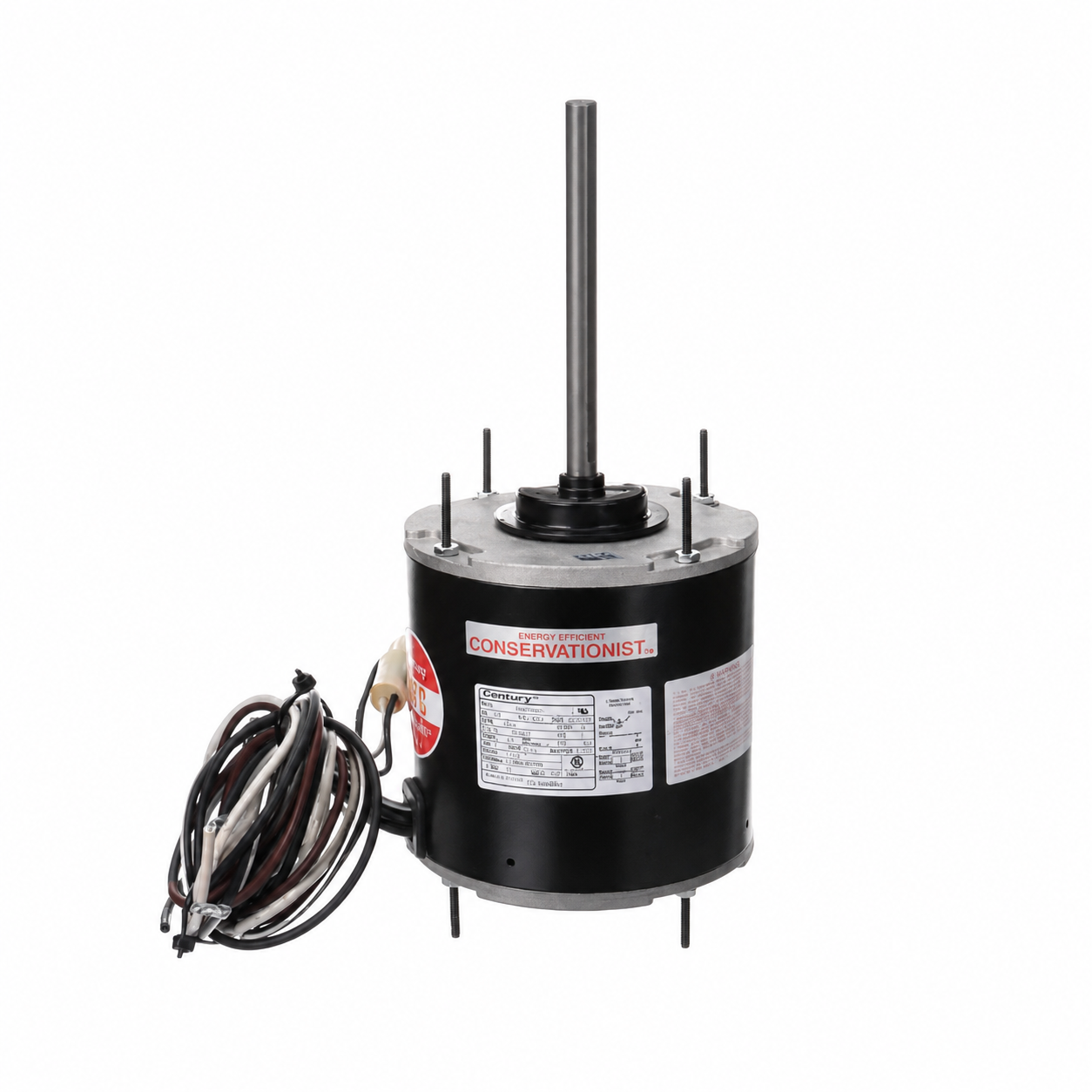

Century Condenser Fan Motors (HVAC/R) FE1056SU - 1/2 HP - 208/230 V - 1075 RPM - Single phase

• HP : 1/2
• Voltage : 208-230
• RPM : 1075
• AMPs : 3.8
• Phase : 1
• Rotation : Reversible
• Frame : 48
• Enclosure : Totally Enclosed
• Speeds : 1
• Protector : Thermally Protected
• Ambient Temp : 80°C
• Service Factor : 1.00
• Shaft Dimensions : 0.500 in X 6.5 in
• Frequency : 60Hz
• Diameter : 5.5 in
• Length : 4.75 in
• Bearings : Ball
• Features : Class F Insulation, 48" Leads, Extended Studs Shaft End, Mounting Holes in Shell, Belly Band, 4.33BC Lead End End-Frame
• Weight : 18 lbs
• Cross References : A.O. Smith F48AB24A01 F48AD52A01 F48AJ72A01 F48H87A01 F48U25A01 F48W84A01, Carrier HC43VA233, Emerson KA55HXGMR1873, Emerson Catalogue No. 1878 1862H, Fasco Catalogue No. D7907, General Electric 5KCP36MN72 5KCP39KFM764 5KCP39KGL839 5KCP39KGM926 5KCP39NGT101 5KCP39PGL138, General Electric Catalogue No. 3734, Keeprite 121924, Marathon 48A11O02049, Rotom CF-3734 R32511, Trane X70670709-010, Universal Electric HF3T026, MO-028
